Furuno F3 Wassp Wideband Chirp Multi Beam Echo Sounder Easy To Use With Outstanding Performance

Furuno F3 Wassp Wideband Chirp Multi Beam Echo Sounder Easy To Use With Outstanding Performance
Furuno F3 Wassp Wideband Chirp Multi Beam Echo Sounder Easy To Use With Outstanding Performance Furuno F3 Wassp Wideband Chirp Multi Beam Echo Sounder Easy To Use With Outstanding Performance Furuno F3 Wassp Wideband Chirp Multi Beam Echo Sounder Easy To Use With Outstanding Performance

Large Image :  Furuno F3 Wassp Wideband Chirp Multi Beam Echo Sounder Easy To Use With Outstanding Performance

Product Details:
Place of Origin: japan
Brand Name: FURUNO
Certification: CCS
Model Number: F3 Series
Payment & Shipping Terms:
Minimum Order Quantity: one set
Packaging Details: carton box
Delivery Time: 15 Days
Payment Terms: L/C, T/T
Supply Ability: 30 set per month
Contact Now

Furuno F3 Wassp Wideband Chirp Multi Beam Echo Sounder Easy To Use With Outstanding Performance

Description
TX Frequency: Wide Band F3/F3i: 160 KHz F3L/F3Li: 80 KHz Beam Width: 120° X 4° (Athwartships X Fore-aft) PS: 4.4°
Interface NMEA0183: GGA, GGK, GLL, HDG, HDM, HDT, HVE, PASHR, PTNL PFEC, RMC, RCD, TSS1, ZDA Display Display Mode: Bathymetry, Sonar Polar View, Sounder (single, Triple & Quint Beam) (Licensing Options) Backscatter, Open Client Support, Water Column Targets, Uncorrected Data, XYZ Export, Sidescan, RTK Tides, Other Export Formats* * Available In 2017
OS: Windows 8.1, 10 CPU: 2 Ghz, 4 Cores/4 Threads
Memory: 8 GB (Min. 4 GB) Screen Resolution: Full HD 1920 X 1080 (Min. XGA 1024 X 768)
Temperature: 0°C To +50°C (storage:-20°C To +85°C) Relative Humidity: IEC60945, 93 % Or Less At +40°C
High Light:

2Ghz furuno echo sounder

,

2Ghz furuno depth sounder

,

2Ghz boat echo sounder

FURUNO F3 Series WASSP Multi Beam Sonar Wideband CHIRP Technology  With Outstanding Performance

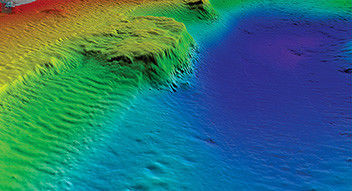

Generate your own personal Multibeam Chart

The F3 series is set to revolutionise inshore fisheries with its Wideband CHIRP technology. Scanning a 120 degrees swath port to starboard and using 224 beams, the F3 series delivers each and every time. By using advanced signal processing, you get a complete picture of seafloor bathymetry with ease

Furuno F3 Wassp Wideband Chirp Multi Beam Echo Sounder Easy To Use With Outstanding Performance 0Furuno F3 Wassp Wideband Chirp Multi Beam Echo Sounder Easy To Use With Outstanding Performance 1Furuno F3 Wassp Wideband Chirp Multi Beam Echo Sounder Easy To Use With Outstanding Performance 2Furuno F3 Wassp Wideband Chirp Multi Beam Echo Sounder Easy To Use With Outstanding Performance 3



.Furuno F3 Wassp Wideband Chirp Multi Beam Echo Sounder Easy To Use With Outstanding Performance 4
WASSP 3D
Furuno F3 Wassp Wideband Chirp Multi Beam Echo Sounder Easy To Use With Outstanding Performance 5
    • Capability to save chart into the CDX software
    • TIMEZERO compatible with optional licence

  • New easy-to-use interface

    The F3 series inctoduce a new simplified software “WASSP CDX” for control, visualisation and data management while still providing a comprehensive set of functions to meet the most demanding fishing requirements.
  • Furuno F3 Wassp Wideband Chirp Multi Beam Echo Sounder Easy To Use With Outstanding Performance 6
  • Cost-effective solution for multiple applications
  • Choose your own functions with new licensing options

    • Various presentations

      Furuno F3 Wassp Wideband Chirp Multi Beam Echo Sounder Easy To Use With Outstanding Performance 7
      Fish Density Overlay

      Furuno F3 Wassp Wideband Chirp Multi Beam Echo Sounder Easy To Use With Outstanding Performance 8
      2D Mapping to 500 m

      Furuno F3 Wassp Wideband Chirp Multi Beam Echo Sounder Easy To Use With Outstanding Performance 9
      Sounder (60 kHz)

      Furuno F3 Wassp Wideband Chirp Multi Beam Echo Sounder Easy To Use With Outstanding Performance 10
      Backscatter (Bottom Hardness) at 200 m

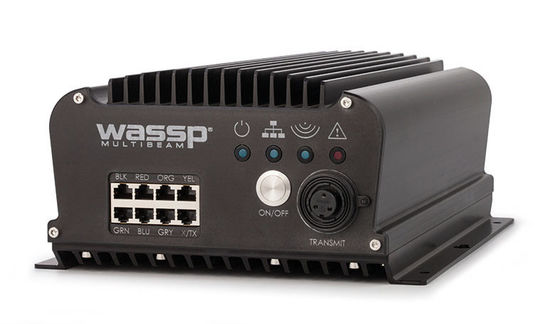

    • All-in-one DRX transceiver, incredibly versatile and ready for the next technology advances

      This innovative all-in-one “BlackBox” is not just a robust hardware platform but also introduces cutting-edge technical innovations and incredible versatility for finding your catch. This opens countless new possibilities for your operations.

      Furuno F3 Wassp Wideband Chirp Multi Beam Echo Sounder Easy To Use With Outstanding Performance 11

    • WASSP transducer

      The WASSP sonar transducer is available in 2 frequencies.

      - 136-184 kHz Wideband (160 kHz center)
      - 68-92 kHz Wideband (80 kHz center)

      Furuno F3 Wassp Wideband Chirp Multi Beam Echo Sounder Easy To Use With Outstanding Performance 12

    Specifications

    General

    TX Frequency
    Wide band
    F3/F3i: 160 kHz
    F3L/F3Li: 80 kHz
    Detection Range
    F3: 200 m* (Side Beam Best Performance)
    400 m* (Main Beam Directly Under Boat)
    F3L: 450 m* (Side Beam Best Performance)
    900 m* (Main Beam Directly Under Boat)

    *Depth capability subject to a variety of external factors.
    Beam Width
    120° x 4° (Athwartships x Fore-aft)
    PS: 4.4°

    Interface

    NMEA0183
    GGA, GGK, GLL, HDG, HDM, HDT, HVE, PASHR, PTNL PFEC, RMC, RCD, TSS1, ZDA

    Display

    Display Mode
    Bathymetry, Sonar polar view, Sounder (single, triple & quint beam)

    (Licensing options)
    Backscatter, Open Client Support, Water Column Targets, Uncorrected Data, XYZ export, Sidescan, RTK tides,
    other export formats*
    * available in 2017

    Minimum PC Specs

    OS
    Windows 8.1, 10
    CPU
    2 Ghz, 4 Cores/4 Threads
    Memory
    8 GB (Min. 4 GB)
    Screen Resolution
    Full HD 1920 x 1080 (Min. XGA 1024 x 768)

    Environment

    Temperature
    0°C to +50°C (storage:-20°C to +85°C)
    Relative humidity
    IEC60945, 93 % or less at +40°C
    Waterproofing
    IP53, Bulkhead mounted (IP67 option available)
    Vibration
    IEC60945 Ed.4

    Power Supply

    Transceiver Unit
    9 to 32 VDC

    Others

    Size
    Transceiver Unit: 216(W) x 260 (D) x 205 (H) mm
    Transducer:
    WMB-160 (160 kHz) ; 98 (H) x 330 (W) x 168 (D) mm
    WMB-80 (80 kHz); 133 (H) x 533 (W) x 340 (D) mm
    Weight
    Transceiver Unit: 8.3 kg
    Transducer:
    WMB-160 (160 kHz) ; 15 kg
    WMB-80 (80 kHz); 39 kg

Tag:

200W multibeam echo sounder,

roll stabilization echo depth sounding,

Multi Beam digital echo sounder
