Product Details:
|
| Detector: | MCT 640 ×512 | Spectral Range: | 3.7 ~4.8μm |
|---|---|---|---|
| Pixel Pitch: | 15μm | Cooling Method: | Stirling Refrigerator |
| Focal Length: | 35 ㎜～700 ㎜ Continuous Zoom | Frame Frequency: | 50Hz |
| NETD: | ≤25mk@25℃ | Operation TemperatureOperation Temperature: | -30℃~55℃ |
| High Light: | 700mm Thermal Imaging Camera System,F4 Thermal Imaging Camera System,LEO Detector Thermal Imaging Camera System |
||

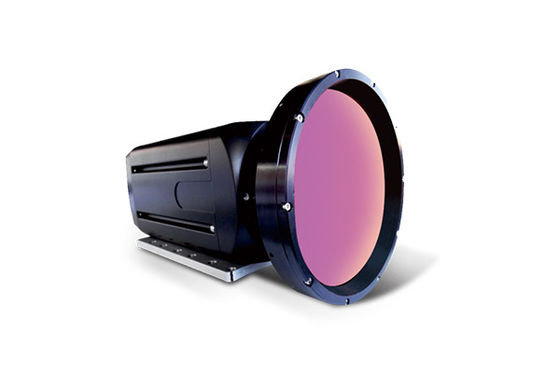

35-700mm Thermal Imaging System is an advanced MWIR cooled thermal imager used for long-distance detection. The highly sensitive MWIR cooled core with 640x512 resolution can produce very clear image with very high resolution; the 35mm ～ 700mm continuous zoom infrared lens used in the product can effectively distinguish targets such as people, vehicles and ships in long distance.
Figure1 Thermal imaging image
Technical Specification
1 Detector
Detector MCT 640 ×512
Spectral range 3.7 ~4.8μm
Pixel pitch 15μm
Cooling method Stirling Refrigerator
Focal length 35 ㎜～700 ㎜ continuous zoom
FOV range 0.78°(H) ×0.63°(V)to 15.7°(H) ×12.6°(V)
Cooling time ≤8 minutes in normal temperature
Video Output standard PAL format analog video signal
Frame Frequency 50Hz
NETD ≤25mk@25℃
Power source DC 24 ~32 V, with power reverse polarity protection
Power consumption ≤15W@25℃, steady state
≤30W@25℃, start-up peak
Operation Temperature -30℃~55℃
Storage Temperature -40℃~70℃
Control communication RS232/RS422
Correction manual correction/background correction
Polarity control white hot/black hot switch
Electronic Zoom ×2/×4 electronic zoom
Image enhancement Yes
Cross display Yes
Image turning Horizontal/vertical
