Product Details:
|
Settling Time: | 5min | Attitude: | 0.02deg,1σ |
---|---|---|---|
Heading Accuracy: | 0.1sec(Lat),1σ Autonomous | Heave: | 5cm Or 5% |
Rotation Rate: | ±400deg/s | Acceleration: | ±20g |
Work Temperature: | -40℃~+70℃ | Storage Temperature: | -55℃~+85℃ |
Vibration: | 0.04g²/hz@20~2000hz | Shock: | 30g@6ms,keep Accuracy 50g@11ms,no Damage |
Power Supply: | 18V~36V DC | Consumption: | ≤15w |
Size(W×D×H): | 180×180×150mm | Weight: | ≤4.8kg |
Waterproof: | IP66 | RS232/RS422 Port: | 4 Outputs/2 Inputs |
Ethernet Port: | 4 Outputs/2 Inputs | Pulse Port: | 2 Outputs/4 Inputs |
Data Formats: | NMEA0183,ASCII,BINARY | MTBF: | 80000hrs |
Warranty: | Three Yeas | ||
Highlight: | 0.02deg ship gyro compass,0.02deg marine gyro compass,IP66 electronic gyro compass |

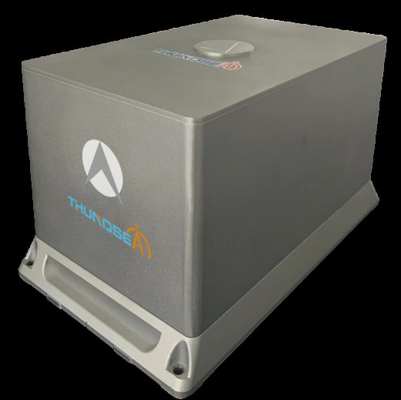

FG-800A model attitude and heading reference unit is an all-in-one gyro compass and motion sensor,used to measure the position,velocity, attitude,angular rate and acceleration of the carrier.This system consists of three high cost-performance ratio fiber optic gyros, three quartz accelerometers and electric processing PCBs, fiber optic gyro to measure the attitude and accelerometer to measure the acceleration.FG-800A is designed according to military standards,and the electromagnetic shielding, thermo-balance, and sealing are fully considered to guarantee excellent performances even in extreme conditions.
Features
• Initial self-alignment on static or dynamic basis
• Error parameters calibration and compensation in full temperature range
• Interfaces for GNSS/Odometer/DVL
• Configurable navigation modes
• High autonomous accuracy
• Real-time heave
• Military standards
Applications
• Compass for sea vehicle
• Under-water vehicle navigation and positioning
• Positioning and north-finding for land vehicle
• Stabilization and control for moving carrier
• Attitude measurement
Outline Drawing
Performances | Setting time | 10min |
Attitude | 0.01deg, 1σ | |
Heading accuracy | 0.05°,1σ autonomous | |
0.02°,with GPS aiding | ||
Heave | 5cm or 5% | |
Measuring Ranges | Rotation rate | ±400deg/s |
Acceleration | ±20g | |
Work Environment | Work Temperature | ‐40℃~+60℃ |
Storage Temperature | ‐55℃~+70℃ | |
Vibration | 0.04g2/hz @ 20~2000hz | |
Shock | 30g @ 6ms/50g @ 11ms | |
Electrical Characteristics | Power supply | 18~36VDC |
Consumption | ≤15W | |
Size(W x D x H) | 171×308×172 mm | |
Physical Characteristics | Weight | ≤6.8kg |
Water Proof | IP 65 | |
Interfaces | RS232/RS422 port | 2 outputs/4 inputs |
Ethernet port | 1 inputs | |
CAN port | 2 outputs | |
Data formats | NMEA 0183, ASCII,BINARY | |
Reliability | MTBF | 80000 hrs |
Warranty | 3 years |
