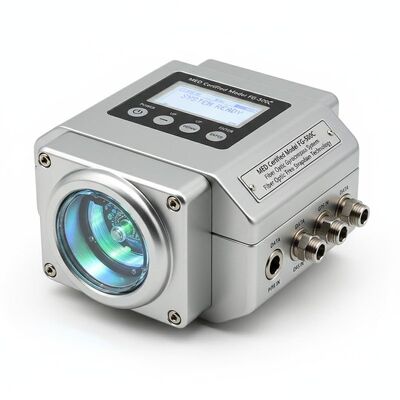

Model FG-500C Long Warranty Fast Response Strapdown Technology Fiber Optic Gyrocompass Maintenance Free

Model FG-500C Long Warranty Fast Response Strapdown Technology Fiber Optic Gyrocompass Maintenance Free
Model FG-500C Long Warranty Fast Response Strapdown Technology Fiber Optic Gyrocompass Maintenance Free

Large Image :  Model FG-500C Long Warranty Fast Response Strapdown Technology Fiber Optic Gyrocompass Maintenance Free

Product Details:
Place of Origin: CHINA
Brand Name: NAVI OPTICS
Certification: CCS
Model Number: FG-500C
Document: FG-500C Fiber Optic Gyro Co...m.docx
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Corton Box
Delivery Time: 5-8 work days
Payment Terms: L/C
Supply Ability: 30 SETS per Month
Contact Now

Model FG-500C Long Warranty Fast Response Strapdown Technology Fiber Optic Gyrocompass Maintenance Free

Description
Roll And Pitch: 0.05° Settling Time: 15 Mins
Interface: RS 232/RS 422 Power Spply: 24VDC
Weight: 5.9 Kg Dimension: 308*171*171 Mm
Highlight:

0.2° digital gyro compass

,

192mm 15 mins gyro compass in ship

,

RS232 ship gyro compass

Model FG-500C Long Warranty Fast Response Strapdown Technology Fiber Optic Gyrocompass Maintenance Free


INTRODUCTION

High reliability, low cost, fast alignment and free maintenance, FG-500C fiber optic gyro compass system is a solid, fully digital gyro compass perfectly designed for commercial ship. Based on strapdown navigation system, it could be installed directly on the vessels without complex frame structure. Short alignment time less than 15 mins, it significantly reduces the preparing time of vessel sailing. High dynamic accuracy gets the vessel a higher security, especially when sailing in high latitude areas.

CHARACTERISTICS

Adopts miniaturized medium accuracy closed-loop fiber optic gyroscope as core components
Fast dynamic response
Wide dynamic measuring range
High reliability, meeting the requirements of long-endurance applications
Small size with compact design


APPLICATION

Ships and boats, cargo vessel, fishing vessel, police vessel, cruise vessel, unmanned underwater vehicle, offshore platform, stationary vehicle, unmanned aerial vehicle etc.



STRUCTURAL DIMENSION

Model FG-500C Long Warranty Fast Response Strapdown Technology Fiber Optic Gyrocompass Maintenance Free 0


SPECIFICATIONS

Settling Time

Settling time at dock:10min

Settling time at sea:15min
Accuracy Roll＆Pitch(1σ)

0.05°
Heading(1σ)

0.2° sec Lat
Dynamic Range Angular Rate ±400°/s
Acceleration ±12g
Power Consumption

24VDC/15W
Interface RS-232/RS-422/CAN
Dimension

<308mmx171mm×171mm(L,W,H)
Weight

≤5.9kg



Tag:

Octans ship gyro compass,

80000 hrs marine gyro compass,

IP66 electronic gyro compass
