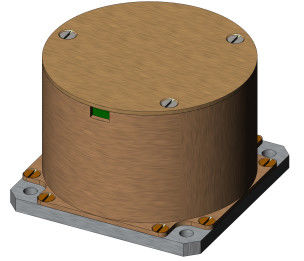

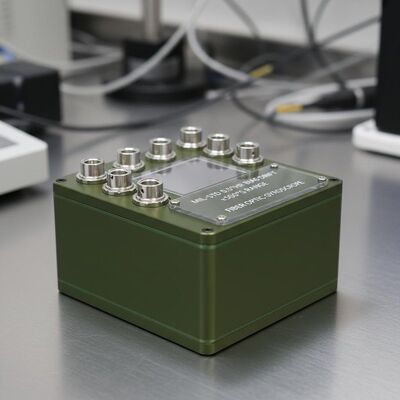

Military Grade 0.5 °/hr Bias Drift Single Axis Gyro with ±500°/s Range Fiber Optic Gyroscope
Key Attributes
Brand Name:
Navioptics
Model Number:
XB120/F50
Place of Origin:
China
Certification:
CCS
Minimum Order Quantity:
one set
Supply Ability:
30 set per month
Delivery Time:
15 Days
Standard Packaging:
carton box
Product Summary
Military-grade F50 fiber optic gyroscope with 0.5°/hr bias drift, ±500°/s range, and 200Hz bandwidth. Compact 50×50×35mm design, operates from -40°C to 60°C. Certified performance with low power consumption under 5W.
Product Custom Attributes
Highlight
0.5 °/Hr solid state gyroscope
,Single Axis boat gyroscope
,Fiber Optic mems gyroscope
Display:
320 X 240 Pixels,8"TFT 800*600 PIX,3.5 TFT LCD,3.5-inch TFT Display,3.5" TFT-LCD
Product Description
0.5 °/Hr Bias Drift Single Axis Gyro
Model XB120/F50 High Accuracy Single-axis Fiber Optic Gyroscope
The F50 type fiber optic gyroscope is a uniaxial low precision military grade fiber optic gyroscope produced by Institute of Photoelectric Technology, Beijing University of Aeronautics and Astronautics, featuring 0.5°/hr bias drift performance.
Main Performance Indicators
| Parameter | Specification | Test Conditions |
|---|---|---|
| Bias Drift at full temperature range (-40℃ to 60℃) | <0.5°/hr (1σ) | 2H continuous test, 10s smooth result |
| Bias Drift Repeatability at full temperature range (-40℃ to 60℃) | <0.5°/hr (1σ) | Calculation results of six test data |
| Random Walk | <0.05°/√hr | |
| Scale Factor Non-linearity at full temperature range (-40℃ to 60℃) | <200ppm (1σ) | |
| Scale Factor Repeatability at full temperature range (-40℃ to 60℃) | <200ppm (1σ) | Calculation results of three test data |
| Range of measured angular rate | ±500°/s | It can be adjusted according to need |
| Bandwidth | ≥200Hz | The internal closed-loop bandwidth is larger than 2K, and the update rate of output data determines the bandwidth of gyroscope |
| Operating temperature | -40℃ to 60℃ | |
| Storage temperature | -50℃ to 70℃ | |
| Vibration | 4.2g, 20Hz-1000Hz | Sweep-frequency Vibration without Resonance |
Mechanical Interface Definition
Dimensions and Weights
| Parameter | Specification |
|---|---|
| Outline size | 50mm * 50mm * 35mm |
| Weight | ≤120g |
| Mounting hole spacing | 41mm * 41mm |
| Mounting screws | φ3.4 |
| Installation Surface Accuracy | Flatness 0.01mm |
Power Requirements
XB120/F50 fiber optic gyroscope is powered by +5V DC power supply.
| Parameter | Specification | Notes |
|---|---|---|
| +5V power supply | 5W | The maximum impulse current is close to 2A |
| -5V power supply | 3W | |
| Power precision | ±5% | |
| Power ripple | 20mV Vpp | |
| Gyroscope power consumption at room temperature | <2W | |
| Full temperature Power Consumption of Gyroscope | <5W | -40℃ to 60℃ |
Interface Definition and Communication Protocol
The external interface of gyroscope adopts lead-out mode. The specification of lead-out line AF-250A-7*0.12, single point and single line, length not less than 150 mm, lead definition is distinguished by color.
Wiring Table
| Electrical characteristics | Lead color | Lead specification |
|---|---|---|
| T+ | green | AF-250A-7*0.12 |
| T- | violet | AF-250A-7*0.12 |
| -5V | yellow | AF-250A-7*0.12 |
| GND | black | AF-250A-7*0.12 |
| +5V | red | AF-250A-7*0.12 |
