Product Details:
|
| Detector: | MCT 640 ×512 | Spectral Range: | 3.7 ~4.8μm |
|---|---|---|---|
| Pixel Pitch: | 15μm | Cooling Method: | Stirling Refrigerator |
| Focal Length: | 150 ㎜～1500 ㎜ Continuous Zoom | Frame Frequency: | 30Hz |
| NETD: | ≤25mk@25℃ | Operation TemperatureOperation Temperature: | -30℃~55℃ |
| Highlight: | 1500mm Thermal Imaging Camera System,F5.5 Thermal Imaging Camera System,150mm Thermal Imaging Camera System |
||

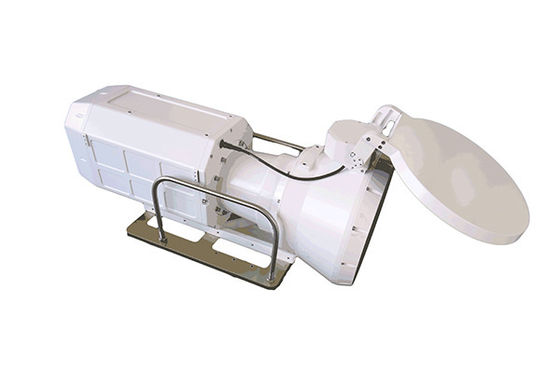

150-1500mm Thermal Imaging System is an advanced MWIR cooled thermal imager used for long-distance detection. The highly sensitive MWIR cooled core with 640x512 resolution can produce very clear image with very high resolution; the 150mm ～ 1500mm continuous zoom infrared lens used in the product can effectively distinguish targets such as people, vehicles and ships in long distance.
Figure1 Thermal imaging image
Technical Specification
1 Detector
Detector MCT 640 ×512
Spectral range 3.7 ~4.8μm
Pixel pitch 15μm
Cooling method Stirling Refrigerator
Focal length 150 ㎜～1500 ㎜ continuous zoom
FOV range 3.6°(H) ×2.9°(V)to 0.36°(H) ×0.29°(V)
Cooling time ≤8 minutes in normal temperature
Video Output standard PAL format analog video signal
Frame Frequency 30Hz
NETD ≤25mk@25℃
Power source DC 24 ~32 V, with power reverse polarity protection
Power consumption ≤15W@25℃, steady state
≤40W@25℃, start-up peak
Operation Temperature -30℃~55℃
Storage Temperature -40℃~70℃
Control communication RS422
Correction manual correction/background correction
Polarity control white hot/black hot switch
Electronic Zoom ×2/×4 electronic zoom
Image enhancement Yes
Cross display Yes
Image turning Horizontal/vertical
