Product Details:
|
| Transmitting Frequency: | 200Hz | Beam Coverage Angle: | 30°-140°(online Adjustable) |
|---|---|---|---|
| Sounding Resolution: | 1cm | Beam Angle: | 1.5°×1.5°,2°×1.5°(Optional) |
| Beam Number: | 512(maximum) | Range Of Sounding: | 0.5m-300m |
| Pressure Depth Of Sonar Transducer: | 50m | Maximum Ping Rate: | 60Hz |
| Working Mode: | Equiangular/equidistant Mode | Roll Stabilization: | ±10° |
| Input Voltage: | 220V AC/50Hz | Power Waste: | 200W |
| Temperature((work/storage): | Sonar System:－2℃~40℃/30℃~55℃ @Transducer End:－2℃~30℃/30℃~55℃ | Transducer Cable Length: | Standard 15m(other Length Can Be Customized) |
| Transducer Weight/size: | 17.5kg(in Air)/420×320×200mm(titanium Alloy) @12.5kg(in Air)/340×320×200mm(aluminium Alloy) | Deck Unit Weight//Dimension: | 2.5kg/410×330×50mm |
| Highlight: | 200W multibeam echo sounder,1cm echo depth sounding,1cm digital echo sounder |
||

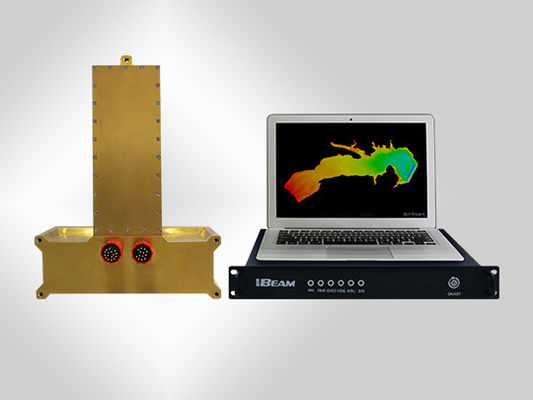

Roll Stabilization 200W Multi Beam Echo Sounder High beam density and ping rate Miniaturization
Features
Miniaturization of products
Easy to install, suitable for installation of small vessels
High beam density
Equiangular and equidistant beam modes are switchable. A maximum of 512 beams are suitable for all investigation tasks.
Real-time roll stabilization
Real-time roll stabilization, maximizes sweep width and improves work efficiency.
High Ping rate
High Ping rate allows higher speed measurement, ensures data quality and saves measurement time.
Depth of water
The measuring depth range is from 0.5 m to 300 m, which meets the needs of shallow water survey.
Normative Requirements
Complying with IHO S44 Super Standard and the Requirements of " Regulation for Survey of Waterway Engineering"
Display and control software-acquisition and navigation software
Powerful, easy operation, user-friendly interface; acquisition software realistic color display, under 3D view automatic marking dimension, coordinates and shallowest water depth of underwater
Technical Specification
| Transmitting frequency | 200kHz |
| Beam Coverage Angle | 30°-140°(online adjustable) |
| Sounding resolution | 1cm |
| Beam angle | 1.5°×1.5°,2°×1.5°(Optional) |
| Beam number | 512(maximum) |
| Range of sounding | 0.5m-300m |
| Pressure Depth of Sonar Transducer | 50m |
| Maximum Ping rate | 60Hz |
| Working mode | Equiangular/equidistant mode |
| Roll stabilization | ±10° |
| Input voltage | 220V AC/50Hz |
| Power waste | 200W |
| Temperature((work/storage) | Sonar system:－2℃~40℃/30℃~55℃ |
| Transducer end:－2℃~30℃/30℃~55℃ | |
| Transducer Cable Length | Standard 15m(other length can be customized) |
| Transducer weight/size | 17.5kg(in air)/420×320×200mm(titanium alloy) |
| 12.5kg(in air)/340×320×200mm(aluminium alloy) | |
| Deck Unit Weight//Dimension | 2.5kg/410×330×50mm |
