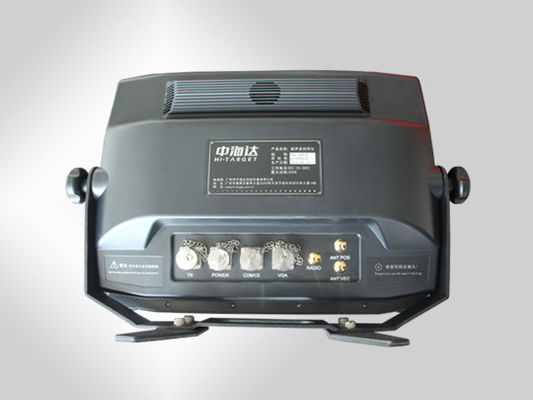

Super High Pixel HD-MAX 200kHz Recording Playback Single Beam Echo Sounder Easy Recording And Playback Multiple Outputs
Key Attributes
Brand Name:
Navioptics
Model Number:
HD-MAX
Place of Origin:
Qingdao
Certification:
CCS
Minimum Order Quantity:
one set
Supply Ability:
30 set per month
Delivery Time:
15 Days
Payment Terms:
T/T
Standard Packaging:
carton box
Product Summary
Super High Pixel HD-MAX Echo Sounder Easy Recording And Playback Multiple Outputs Features Full digital design, easy recording of analog signals and bathymetric data, easy playback High signal-to-noise sonar processing circuit adapts to any deep and shallow complex water measurement 17"Super ...
Product Custom Attributes
Highlight
2GB echo sounder transducer
,1m/s furuno echo sounder
,1m/s furuno depth sounder
Working Frequency:
200kHz
Maximum Transmit Power:
800W
Range:
0.15m~300m
Accuracy:
±10mm＋0.1%h,resolving Power 25px
Draft Range:
0~15m
Sound Speed Range:
1370~1700m/s,resolving Power 1m/s
CPU:
1.92GHz,Dual Core
Memory:
2GB
Maximum Rate Of Water Depth Sampling:
30Hz
Hard Disk:
80G SSD Solid State Hard Disk(Extensible)
Display:
17 Inches,1280*1024@60Hz Resolution
External Port:
1*RS-232/RS485＋1*RS-232,3*USB,1*LAN
VGA:
A VGA Port For Split Screen Display
Power Supply:
10~30V Wide Voltage Power Supply /AC
Average Power Consumption:
Less Than 40W
Working Temperature:
－20℃~70℃
Weight:
9.5kg
Outline Size:
480×360×110mm
Product Description
Super High Pixel HD-MAX Echo Sounder Easy Recording And Playback Multiple Outputs
Features
Full digital design, easy recording of analog signals and bathymetric data, easy playback
High signal-to-noise sonar processing circuit adapts to any deep and shallow complex water measurement
17"Super LargeLCD, Super High Pixel Design
It can be connected with different sensor devices, provide VGA interface and support multi-terminal display.
Optional different positioning accuracy modules can be chosen to support pseudorange difference module and
Beidou RTK difference module with strong expansibility.
Built-in new HiMAX navigation, acquisition, post-processing software, supporting analog and digital signal overlap,
arbitrary point adding output, multi-tide level correction, and different data formats output
Technical Specification
| Working frequency | 200kHz |
| Maximum transmit power | 800W |
| Range | 0.15m~300m |
| Accuracy | ±10mm＋0.1%h,resolving power 25px |
| Draft range | 0~15m |
| Sound Speed Range | 1370~1700m/s,resolving power 1m/s |
| CPU | 1.92GHz,Dual core |
| Memory | 2GB |
| Maximum rate of water depth sampling | 30Hz |
| Hard disk | 80G SSD Solid State Hard Disk(Extensible) |
| Display | 17 inches,1280*1024@60Hz resolution |
| External port | 1*RS-232/RS485＋1*RS-232,3*USB,1*LAN |
| VGA | A VGA port for split screen display |
| Power Supply | 10~30V Wide Voltage Power Supply /AC |
| Average power consumption | Less than 40W |
| Working temperature | －20℃~70℃ |
| Weight | 9.5kg |
| Outline size | 480×360×110mm |
