Product Details:
|
| Input Frequency: | 406.00~406.06MHz,121.5MHz | Input Power: | ﹣40dBm~15dBm@406MHz,﹣40dBm~15dBm@121.5MHz |
|---|---|---|---|
| 406MHz' S Frequency Measurement Precision: | Accuracy Of ±50Hz | 121.5MHz' S Frequency Measurement Precision: | Accuracy Of ±300Hz |
| 406MHz' S: | Dual Phase L Code Demodulation | Data Storage Capacity: | 2G |
| LCD Display: | Resolution 320*240 | Antenna: | Omnidirectional And Detatchable Type |
| Battery Operating Time: | 5 Hours | Working Temperature: | ﹣10℃~50℃ |
| High Light: | Dual phase Beacon Tester,VIR8 epirb tester,15dBm epirb tester |
||

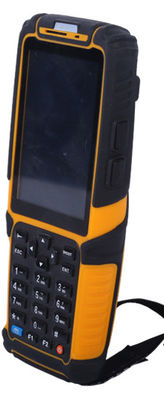

Dual Phase VIR8 Digital Demodulation Beacon Tester small size light in weight low power consumpt
Functions
Beacon Tester is the device for testing EPIRB’s technical parameter.
Variety of information can be measured and displayed on the Tester, just like frequency of the input signal,
power, code etc. It can be widely used in testing during EPIRB’s production, factory inspection, repair and
maintenance, and annual appraisal etc.
Features
◆High-performance: using the latest digital demodulation technology, small size, light in weight, low power consumption.
◆Friendly interface: On base of Chinese display interface developed by Android.
◆Adopting structure of industrial handset: easy operation, easy to carry, High protection level, very suitable for outdoor operation at ports, docks, ship deck etc.
Specifications
| Input frequency | 406.00~406.06MHz,121.5MHz |
| Input power | ﹣40dBm~15dBm@406MHz,﹣40dBm~15dBm@121.5MHz |
| 406MHz' s frequency measurement precision |
Accuracy of ±50Hz |
| 121.5MHz' s frequency measurement precision |
Accuracy of ±300Hz |
| 406MHz' s | Dual phase L code demodulation |
| Data storage capacity | 2G |
| LCD display | Resolution 320*240 |
| Antenna | Omnidirectional and detatchable type |
| Battery operating time | 5 hours |
| Working temperature | ﹣10℃~50℃ |
