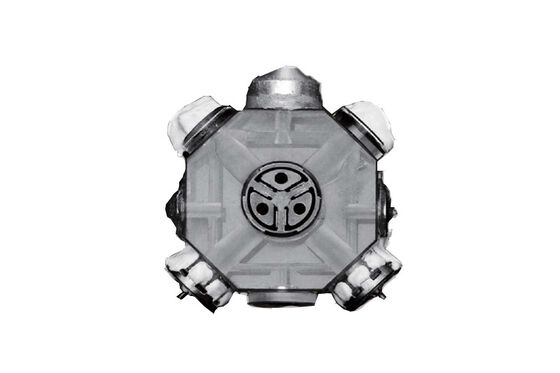

TDLG50 High Precision Laser Gyroscope For Long Range Weapons
Key Attributes
Brand Name:
Navioptics
Model Number:
TDLG50
Place of Origin:
China
Minimum Order Quantity:
one set
Supply Ability:
30 set per month
Delivery Time:
15 Days
Payment Terms:
T/T
Standard Packaging:
carton box
Product Summary
Introduction The TDLG50 laser gyroscope is a rugged inertial device developed for small and lightweight requirements. It is fully benchmarked against the GG1308 laser gyro and adopts the same design and process route. Feature 1,Good stability of scale factor 2,Strong resistance to shock overload 3...
Product Custom Attributes
Highlight
Long Range Weapons Precision Laser Gyroscope
,Laser Gyroscope For Long Range Weapons
,Laser Gyro For Long Range Weapons
Product Description
Introduction
The TDLG50 laser gyroscope is a rugged inertial device developed for small and lightweight requirements. It is fully benchmarked against the GG1308 laser gyro and adopts the same design and process route.
Feature
1,Good stability of scale factor
2,Strong resistance to shock overload
3,Insensitive to temperature and electromagnetism
4,Small volume, light weight, low cost
Application Scope
Mainly used in the field of low-precision inertial navigation, including assisted medium-range navigation, various tactical missiles, long-range weapons (rockets, etc.), high-speed rotary bombs, unmanned control of small aerial vehicles, torpedoes, various types of smart munitions, combat vehicles and specialized civilian vehicles.
Main technical indicators
|
TDLG50 Medium-high Precision Laser Gyroscope |
|
|
External Dimension Drawing(W×D×H) |
73.5mm×67.5mm×23.3mm |
|
Weight |
(165~185)g |
|
Zero Bias stability |
(0.005~0.01)deg/h Typical accuracy:0.006deg/h |
|
Zero Bias Repeatability |
(0.0008~0.03)deg/h |
|
Random Walk |
(0.0007~0.002)deg/√h |
|
Scale factor stability |
＜5ppm |
|
Measurement range |
±2000°/s |
|
Operating temperature |
(-50~80)℃ |
|
Storage Life |
＞27y |
|
Operating Life |
＞80000h(Type) ＞150000h(Customizable) |
|
Vibration |
＜8g |
|
Sensitive axial maximum overload |
50g |
