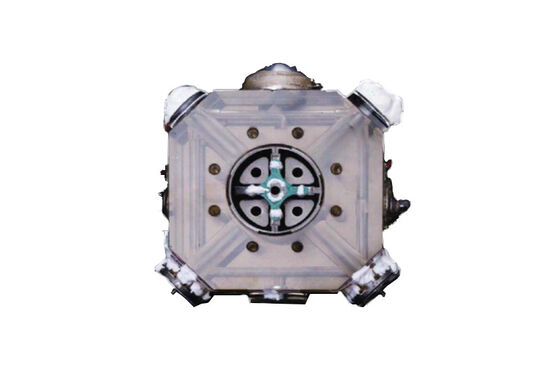

TDLG70 High Precision Laser Gyroscope Small Volume Light Weight
Key Attributes
Brand Name:
Navioptics
Model Number:
TDLG70
Place of Origin:
China
Certification:
CCS
Minimum Order Quantity:
one set
Supply Ability:
30 set per month
Delivery Time:
15 Days
Payment Terms:
T/T
Standard Packaging:
carton box
Product Summary
Introduction The TDLG70 laser gyroscope is a rugged inertial device developed for small and lightweight requirements. It is fully benchmarked against the GG1308 laser gyroscope and adopts the same design and process route. Feature 1,Good stability of scale factor 2,Strong resistance to shock ...
Product Custom Attributes
Highlight
Small Volume Laser Gyroscope
,Light Weight Laser Gyroscope
,Light Weight Laser Gyro
Operating System:
2- Axis 4-beam Pulse Doppler Sonar Or ROT-combined 3-axis 4-beam Pulse Doppler Sonar (ROT:option
Operating Frequencies:
240kHz (BT : For Speed Against The Ground) 2MHz (WT : For Speed Against The Water)
Distance Run Range:
0 To 99999.99nm
Depth Range:
BT : 2 To 250m (below Hull Bottom)depending Upon Sea Bottom Conditions WT : 3m Or More (below Hull Bottom)
Speed Measuring Accuracy:
±1% Or 0.1 Kts Whichever Is Greater
Total Distance Run Accuracy:
±1% Or 0.1 Nm Whichever Is Greater
Power Consumption:
300VA Or Less
Operating Temperature:
-15deg.C To +55deg.C
Product Description
Introduction
The TDLG70 laser gyroscope is a rugged inertial device developed for small and lightweight requirements. It is fully benchmarked against the GG1308 laser gyroscope and adopts the same design and process route.
Feature
1,Good stability of scale factor
2,Strong resistance to shock overload
3,Insensitive to temperature and electromagnetism
4,Small volume, light weight, low cost
Application Scope
Mainly used in the field of low-precision inertial navigation, including assisted medium-range navigation, various tactical missiles, long-range weapons (rockets, etc.), high-speed rotary bombs, unmanned control of small aerial vehicles, torpedoes, various types of smart munitions, combat vehicles and specialized civilian vehicles.
Main technical indicators
|
TDLG70 High Precision Laser Gyroscope |
|
|
External Dimension Drawing (W×D×H) |
88mm×84.5mm×26.3mm |
|
Weight |
(310~350)g |
|
Zero Bias stability |
(0.0015~0.004)deg/h Typical precision:0.0025deg/h |
|
Zero Bias Repeatability |
(0.0002~0.0008)deg/h |
|
Random Walk |
(0.0002~0.0007)deg/√h |
|
Scale factor stability |
＜3ppm |
|
Measurement range |
±1500°/s |
|
Operating temperature |
(-50~80)℃ |
|
Storage Life |
＞30y |
|
Operating Life
|
＞80000h(Type) ＞200000h(Customizable) |
|
Vibration |
＜7g |
|
Sensitive axial maximum overload |
50g |
