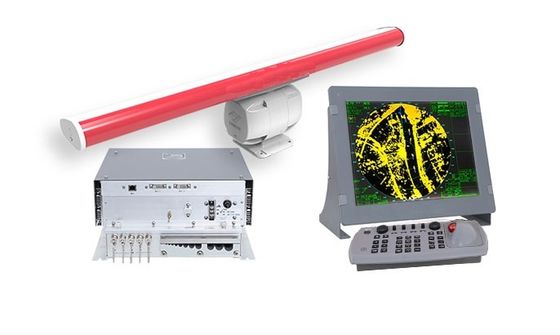

YAR27 Series High-end IMO Radar
12.5KW/25KW X-Band ARPA Radar With IMO certification
Yar27 series IMO maritime radar is a high-performance marine navigation radar developed by our company, which conforms to the latest international specifications and standards of marine radar such as iec60945 and iec62388. Yar27 series ARPA radars have passed the CCS product type approval demonstration, and obtained the B mode (product type approval certificate) and D mode (production quality assurance certificate) of European Union (EC) marine equipment (MED). It is a high-end navigation radar suitable for all kinds of ships.
Yar27 series radar has excellent small target detection performance. It also has very good detection ability for targets with RCS as small as 1.0 m2. The radar adopts the unique sea clutter, rain clutter suppression algorithm, CFAR processing, relative and true wake, ARPA collision avoidance, trial operation ship and other functions, so that the series of radars can directly replace the foreign well-known brand of ocean level medium and high-end radars.
Excellent performance, reliable quality, comprehensive service, higher cost performance, radar is worthy of your trust and selection!
●Unique noise reduction, wave clutter, and rain clutter suppression technology. Ex-cellent performance in small targets detection, far in distance.
●Relative and ground true trails function, monochromatic or gradual in trail color, easy to identify the moving vessels.
●Up to 200 ARPA targets(TT),and 1000 AlS targets, support fusion of the TT and AlS targets.
●Rich radar map marks,200 waypoints,30 nav-lines.
●Setting polygon surveillance area by mouseor Latitude/Longitude, suitable for specific area monitoring, such as fish farms.
●Completely self-test function, with modular architecture, easy to maintain.
●Accept manual heading and postion input, convenient for fix platform surveillance, no compass and navigator needed.
●Support bilingual menu, Chinese or English.
●Optional built-in radar performance monitor(PM),the antenna is installed, ready for adding PM modular any time.
Yar27 series marine radar has been widely used in many occasions, such as ocean merchant ships, domestic sea ships, all kinds of fishing boats, engineering ships, tugs, official law enforcement ships, shore based surveillance, etc. the ship type covers almost all ships as small as tens of tons and as large as tens of thousands of tons, and has a good user reputation.
Contact Person: Yu.Jing

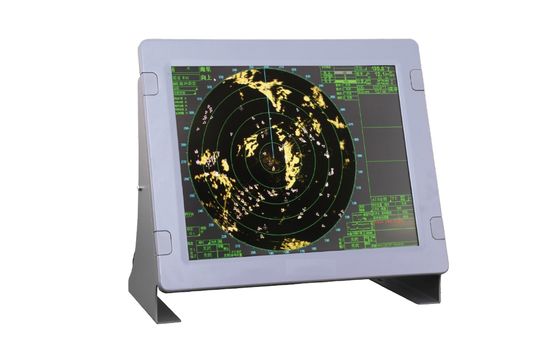

LCD: JAN-9200: 26-inch WUXGA color LCD, 1920 × 1200 dots JAN-7200: 19-inch SXGA color LCD, 1280 × 1024 dots
PPI effective diameter: JMR-9200: 320 mm min. JMR-7200: 250 mm min.
Azimuth display mode: North up, course up, and head up
Operation mode: Relative motion - True trails; Relative motion - Relative rails; True movement - True rails
