Control Grade TDFG50S Fiber Optic Gyroscope High Performance

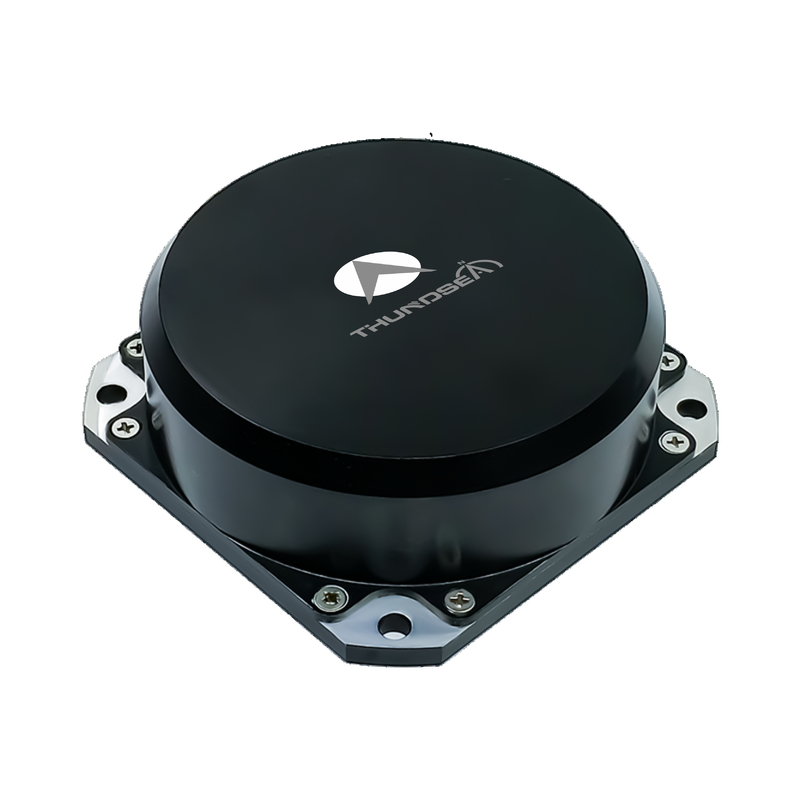

Large Image : Control Grade TDFG50S Fiber Optic Gyroscope High Performance

Product Details:

Place of Origin:	China
Brand Name:	NAVI OPTICS
Certification:	CCS
Model Number:	TDFG50S
Document:	TDFG50S Control Grade Fiber...pe.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	one set
Packaging Details:	carton box
Delivery Time:	15days
Supply Ability:	30 set per month

Contact Now

Control Grade TDFG50S Fiber Optic Gyroscope High Performance

Description

Dynamic Range:	≥±400°/s	Bias In-run:	＜2°/h
Accuracy（10sec）:	0.5°/h~0.2°/h	ARW（Angular Random Walk:	＜0.03°/√hr,1σ
Vibration Screening:	20~2000Hz，6.06g	Bandwidth:	＞200Hz
Weight:	≤160g	Dimensions:	50mm×50mm×30mm
Highlight:	Control Grade Fiber Optic Gyroscope , High Performance Fiber Optic Gyroscope

Control Grade TDFG50S Fiber Optic Gyroscope

1 Introduction

Fiber optic gyroscope is a kind of angular velocity sensor based on optical Saganek effect, adopting high-performance all-digital closed-loop detection technology internally, which can output the carrier angular velocity information above 4KHz in real time through serial port. This series of products can be divided into single-axis, dual-axis and three-axis fiber optic gyroscopes, of which dual-axis and three-axis fiber optic gyroscopes can synchronously detect the angular velocity information of multiple orthogonal axes of the carrier through the technology of shared light source and solver circuit.

2 Application

It is suitable for stabilization and control equipment for guided weapons, attitude control, torpedoes, tactical missiles, and medium and high-end industrial equipment.

3 Characteristics

Small size, light weight and flexible design;
All-solid-state design with no moving parts;
Instant-on, digital output for easy connection to a computer.
Low noise, low power consumption, low cost;
High reliability and long life.

4 Main parameters

Performance	Dynamic Range	≥±400°/s
	Bias in-run	＜2°/h
	Accuracy(10sec)	0.5°/h~0.2°/h
	ARW(Angular random walk	＜0.03°/√hr,1σ
	Vibration screening	20~2000Hz,6.06g
	Bandwidth	＞200Hz
Electrical Interface	Turn on time	10s
	Output signal format	RS-422
	Built in self-test	--
	Output signal update rate	500Hz~4000Hz
	Output signal baud rate	115200bps~921600bps
	Operating temperature	- 40℃ ~ + 70℃
	Storage temperature	- 55℃ ~ + 85℃
Physical Specifications	Power supply	5V
	Connector	J30J-15TJL
	Power consumption	≤3W
	MTBF (per MIL-HDBK-217-F)	＞150000hr
	Weight	≤160g
	Dimensions	50mm×50mm×30mm
