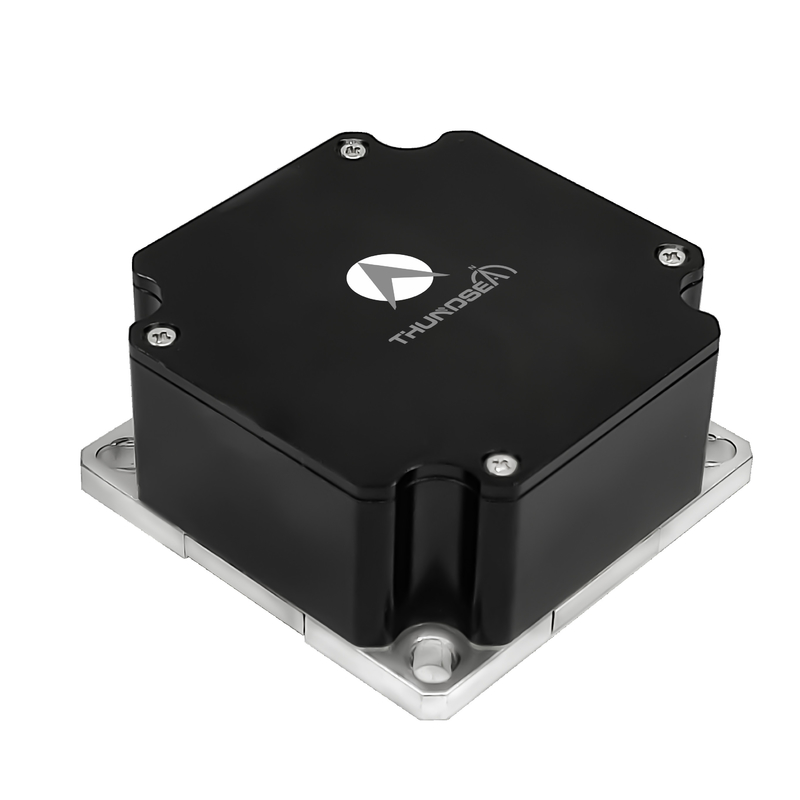

Control Grade TDFG60S Fiber Optic Gyroscope High Bandwidth

Large Image : Control Grade TDFG60S Fiber Optic Gyroscope High Bandwidth

Product Details:

Place of Origin:	China
Brand Name:	NAVI OPTICS
Certification:	CCS
Model Number:	TDFG60S
Document:	TDFG60S Control Grade Fiber...pe.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	one set
Packaging Details:	carton box
Delivery Time:	15days
Supply Ability:	30 set per month

Contact Now

Control Grade TDFG60S Fiber Optic Gyroscope High Bandwidth

Description

Dynamic Range:	≥±400°/s	Bias In-run:	＜1°/h
Accuracy（10sec）:	0.2°/h~0.05°/h	ARW（Angular Random Walk:	＜0.01°/√hr,1σ
Vibration Screening:	20~2000Hz，6.06g	Bandwidth:	＞200Hz
Weight:	≤200g	Dimensions:	60mm×60mm×28.5mm
Highlight:	High Bandwidth Fiber Optic Gyroscope , Control Grade Fiber Optic Gyroscope

Control Grade TDFG60S Fiber Optic Gyroscope

1 Introduction

The fiber optic gyroscope (FOG) is an angular velocity sensor utilizing the optical Sagnac effect‌, which incorporates high-performance all-digital closed-loop technology‌ to provide real-time angular velocity data of carriers through serial communication at frequencies exceeding 4kHz. This product series includes single-axis, dual-axis, and triaxial configurations. Dual-axis and triaxial FOGs employ shared light source and signal processing circuits‌ to simultaneously measure angular velocity across multiple orthogonal axes of moving platforms.

2 Application

It is suitable for stabilization and control equipment for guided weapons, attitude control, tactical missiles, torpedoes, and medium and high-end industrial equipment.

3 Characteristics

Small size, light weight and flexible design;

Instant-on, digital output for easy connection to a computer;

Low noise, low power consumption, low cost;

All-solid-state design with no moving parts

High reliability and long life.

4 Main parameters

Performance	Dynamic Range	≥±400°/s
	Bias in-run	＜1°/h
	Accuracy(10sec)	0.2°/h~0.05°/h
	ARW(Angular random walk	＜0.01°/√hr,1σ
	Vibration screening	20~2000Hz,6.06g
	Bandwidth	＞200Hz
Electrical Interface	Turn on time	10s
	Output signal format	RS-422
	Built in self-test	--
	Output signal update rate	500Hz~4000Hz
	Output signal baud rate	115200bps~921600bps
	Operating temperature	- 40℃ ~ + 70℃
	Storage temperature	- 55℃ ~ + 85℃
Physical Specifications	Power supply	5V
	Connector	J30J-15TJL
	Power consumption	≤3W
	MTBF (per MIL-HDBK-217-F)	＞150000hr
	Weight	≤200g
	Dimensions	60mm×60mm×28.5mm

Tag:

Contact Person: Yu.Jing

Tel: +8613045000776

Fax: 86-532-68977475

Other Products

Model F120H-M High Accury Single-axis Fiber Optic Gyroscope With 0.02 °/hr Bias Drift

Range of measured angular rate (°/s): (°/s) ±300

Scale Factor Non-linearity at fixed temperature (ppm): ≤10

Asymmetry of Scaling Factor at Room Temperature (ppm): ≤10

Scale Factor Repeatability at fixed temperature (ppm): ≤10

Model F70HA High Accury Single-axis Fiber Optic Gyroscope With 0.05 °/hr Bias Drift

Range of measured angular rate (deg/s): ±400

Scale Factor Non-linearity at fixed temperature (ppm): ≤50

Scale factor asymmetry at room temperature (ppm): ≤50

Scale Factor Repeatability at fixed temperature (ppm): ≤50

Model U30 High Accury Single-axis Fiber Optic Gyroscope With 0.5 °/hr Bias Drift

Range of measured angular rate (º/s): ±500

Add meter measurement range (g）: ±30

Bias Drift Repeatability at fixed temperature (10s，1σ，º/h): ≤0.5

Bias Drift at fixed temperature (10s，1σ，º/h）: ≤0.5

Model F70M-M-C High Accury Single-axis Fiber Optic Gyroscope With 0.25 °/hr Bias Drift

Range of measured angular rate (°/s）: ±400

Scale Factor Non-linearity at fixed temperature (ppm): ≤100

Asymmetry of Scaling Factor at Room Temperature (ppm): ≤100

Scale Factor Repeatability at fixed temperature (ppm): ≤0.25

Model F120HB High Accury Single-axis Fiber Optic Gyroscope With 0.01°/hr Bias Drift

Range of measured angular rate (°/s): ±300

Scale Factor Non-linearity at fixed temperature (ppm): ≤5

Asymmetry of scaling Factor at Romm Temperature (ppm): ≤5

Scale Factor Repeatability at fixed temperature (ppm): ≤5
