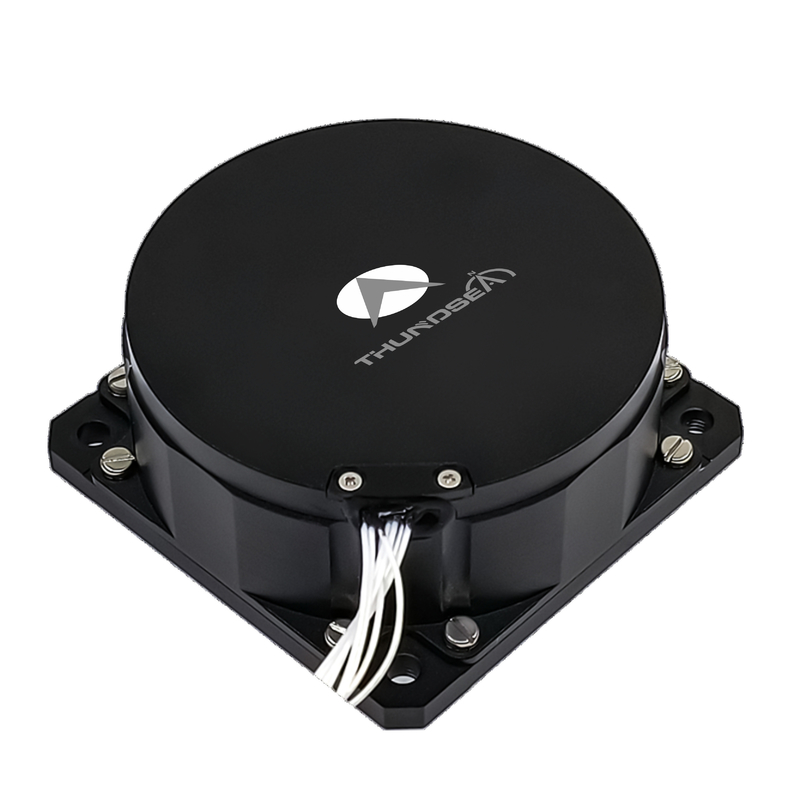

Control Grade TDFG70S Fiber Optic Gyroscope Compact

Large Image : Control Grade TDFG70S Fiber Optic Gyroscope Compact

Product Details:

Place of Origin:	China
Brand Name:	NAVI OPTICS
Certification:	CCS
Model Number:	TDFG70S
Document:	TDFG70S Control Grade Fiber...pe.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	one set
Packaging Details:	carton box
Delivery Time:	15days
Supply Ability:	30 set per month

Contact Now

Control Grade TDFG70S Fiber Optic Gyroscope Compact

Description

Dynamic Range:	≥±400°/s	Bias In-run:	＜1°/h
Accuracy（10sec）:	0.05°/h~0.03°/h	ARW（Angular Random Walk:	＜0.005°/√hr,1σ
Vibration Screening:	20~2000Hz，6.06g	Bandwidth:	＞200Hz
Weight:	≤300g	Dimensions:	70mm×70mm×30mm
Highlight:	Compact Fiber Optic Gyroscope , Control Grade Fiber Optic Gyroscope

Control Grade TDFG70S Fiber Optic Gyroscope

1 Introduction

The fiber optic gyroscope (FOG) is an angular velocity sensing device that operates on the Sagnac effect in optical systems. Leveraging advanced all-digital closed-loop control systems, it delivers real-time angular velocity measurements of moving platforms via high-speed serial interfaces with sampling rates exceeding 4 kHz. Available in single-axis, dual-axis, and three-axis configurations, this product line enables multi-axis synchronization for dynamic motion analysis. Dual and three-axis variants achieve simultaneous orthogonal-axis detection through integrated designs featuring shared optical components and electronic processing units, ensuring precise measurement coherence across all axes.

2 Application

It is suitable for stabilization and control equipment for guided weapons, tactical missiles, torpedoes, attitude control, and medium and high-end industrial equipment.

3 Characteristics

All-solid-state design with no moving parts;
Instant-on, digital output for easy connection to a computer;
Small size, light weight and flexible design;
Low noise, low power consumption, low cost;
High reliability and long life.

4 Main parameters

Performance	Dynamic Range	≥±400°/s
	Bias in-run	＜1°/h
	Accuracy(10sec)	0.05°/h~0.03°/h
	ARW(Angular random walk	＜0.005°/√hr,1σ
	Vibration screening	20~2000Hz,6.06g
	Bandwidth	＞200Hz
Electrical Interface	Turn on time	10s
	Output signal format	RS-422
	Built in self-test	--
	Output signal update rate	500Hz~4000Hz
	Output signal baud rate	115200bps~921600bps
	Operating temperature	- 40℃ ~ + 70℃
	Storage temperature	- 55℃ ~ + 85℃
Physical Specifications	Power supply	5V
	Connector	J30J-15TJL
	Power consumption	≤3W
	MTBF (per MIL-HDBK-217-F)	＞150000hr
	Weight	≤300g
	Dimensions	70mm×70mm×30mm
