Precision Navigation Grade Fiber Gyroscope TDFG98T

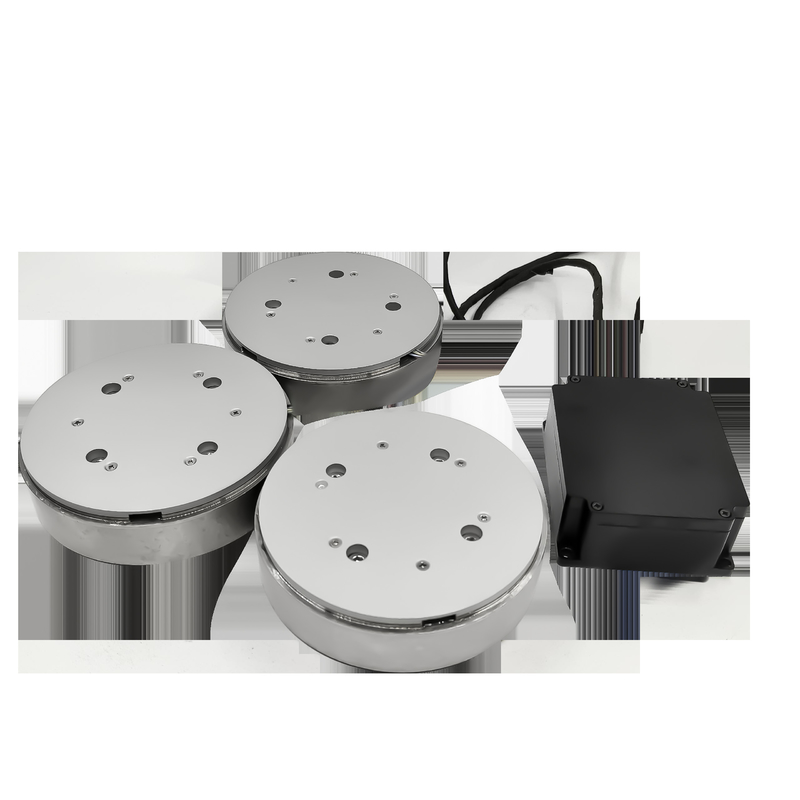

Large Image : Precision Navigation Grade Fiber Gyroscope TDFG98T

Product Details:

Place of Origin:	China
Brand Name:	NAVI OPTICS
Certification:	CCS
Model Number:	TDFG98T
Document:	TDFG98T Navigation Grade Fi...pe.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	one set
Packaging Details:	carton box
Delivery Time:	15days
Supply Ability:	30 set per month

Contact Now

Precision Navigation Grade Fiber Gyroscope TDFG98T

Description

Dynamic Range:	≥±400°/s	Bias In-run:	＜1°/h
Accuracy（100sec）:	0.005°/h~0.003°/h	ARW（Angular Random Walk:	＜0.0008°/√hr,1σ
Vibration Screening:	20~2000Hz，6.06g	Bandwidth:	＞200Hz
Weight:	≤1200g	Dimensions:	60mm×60mm×28mm
Highlight:	Navigation Grade Fiber Optic Gyroscope , Precision Navigation Grade fiber gyroscope

Navigation Grade TDFG98T Fiber Optic Gyroscope

1 Introduction

The fiber optic gyroscope (FOG) functions as an angular velocity sensor utilizing the optical Sagnac effect. Its internal advanced all-digital closed-loop control architecture enables real-time transmission of carrier angular velocity data via serial communication interfaces‌. In inertial navigation systems, three orthogonal single-axis high-precision FOGs or a single integrated triaxial FOG configuration serve as core sensing components, detecting angular velocity parameters of moving platforms along three mutually perpendicular axes relative to inertial space‌.

2 Application

It is suitable for inertial navigation equipment and attitude reference equipment in the fields of guided weapons, aircraft, vehicles, ships, submersibles, orbit detection and medium and high-end industry.

3 Characteristics

High reliability and long life

Low noise, low power consumption, low cost;

Extremely short start-up times and digital outputs for easy integration into digital circuits.

All-solid-state design with no moving parts;

High precision, better stability, flexible design;

4 Main parameters

Dynamic Range	≥±400°/s
Bias in-run	＜1°/h
Accuracy(100sec)	0.005°/h~0.003°/h
ARW(Angular random walk	＜0.0008°/√hr,1σ
Vibration screening	20~2000Hz,6.06g
Bandwidth	＞200Hz
Turn on time	10s
Output signal format	RS-422
Built in self-test	--
Output signal update rate	500Hz~4000Hz
Output signal baud rate	230400bps~921600bps
Operating temperature	- 40℃ ~ + 70℃
Storage temperature	- 55℃ ~ + 85℃
Power supply	5V
Connector (9 pins)	J30JZ/XN9TJCAL01
Power consumption	≤4.5w
MTBF (per MIL-HDBK-217-F)	＞100000hr
Weight	≤1200g
Dimensions	Φ98mm×26mm
Dimensions	60mm×60mm×28mm
