Three Axis Navigation Grade Fiber Optic Gyroscope TDFG60T

Large Image : Three Axis Navigation Grade Fiber Optic Gyroscope TDFG60T

Product Details:

Place of Origin:	China
Brand Name:	NAVI OPTICS
Certification:	CCS
Model Number:	TDFG60T
Document:	TDFG60T Navigation Grade Fi...pe.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	one set
Packaging Details:	carton box
Delivery Time:	15days
Supply Ability:	30 set per month

Contact Now

Three Axis Navigation Grade Fiber Optic Gyroscope TDFG60T

Description

Dynamic Range Bias In-run:	≥±400°/s	Turn On Time:	10s
Accuracy（100sec）:	0.02°/h~0.01°/h	Output Signal Format:	RS-422
Weight:	≤550g	Dimensions:	60mm×60mm×28mm
Highlight:	Navigation Grade Fiber Optic Gyroscope , Three Axis Fiber Optic Gyroscope

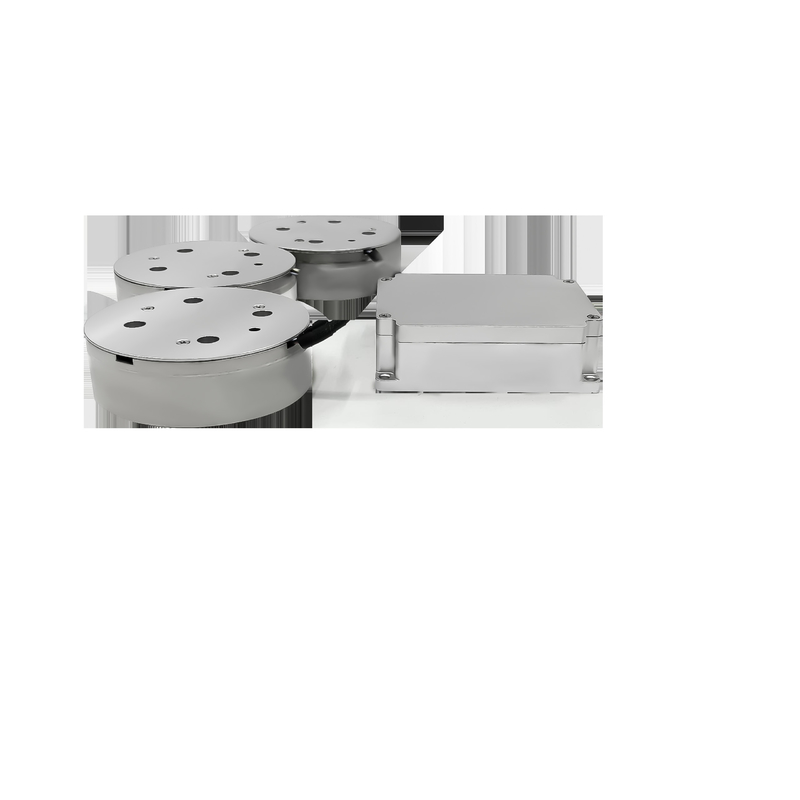

Navigation Grade TDFG60T Fiber Optic Gyroscope

1 Introduction

Fiber optic gyroscope is a kind of angular velocity sensor based on optical Sagnac effect, internal high-performance all-digital closed-loop detection technology, real-time carrier angular velocity information can be output through the serial port. Three single-axis high-precision fiber-optic gyroscopes or three-axis integrated fiber-optic gyroscopes can be used as the core sensors of inertial navigation solution, sensitive carrier relative to the inertial space in three orthogonal directions of the angular velocity information.

2 Application

This product is applicable for inertial navigation systems and attitude reference systems across multiple domains including guided munitions, aerospace platforms, land vehicles, marine vessels, submersible vehicles, orbital detection systems, and medium-to-high-end industrial applications.

3 Characteristics

Low noise, low power consumption, low cost;

High precision, better stability, flexible design;

All-solid-state design with no moving parts;

Extremely short start-up times and digital outputs for easy integration into digital circuits.

High reliability and long life

4 Main parameters

Dynamic Range	≥±400°/s
Bias in-run	＜1°/h
Accuracy(100sec)	0.02°/h~0.01°/h
ARW(Angular random walk	＜0.005°/√hr,1σ
Vibration screening	20~2000Hz,6.06g
Bandwidth	＞200Hz
Turn on time	10s
Output signal format	RS-422
Built in self-test	--
Output signal update rate	500Hz~2000Hz
Output signal baud rate	230400bps~921600bps
Operating temperature	- 40℃ ~ + 70℃
Storage temperature	- 55℃ ~ + 85℃
Power supply	5V
Connector (9 pins)	J30JZ/XN9TJCAL01
Power consumption	≤4.5w
MTBF (per MIL-HDBK-217-F)	＞100000hr
Weight	≤550g
Dimensions	Φ59mm×20mm
Dimensions	60mm×60mm×28mm
