High Precision Ring Laser Gyroscope TDLG50S

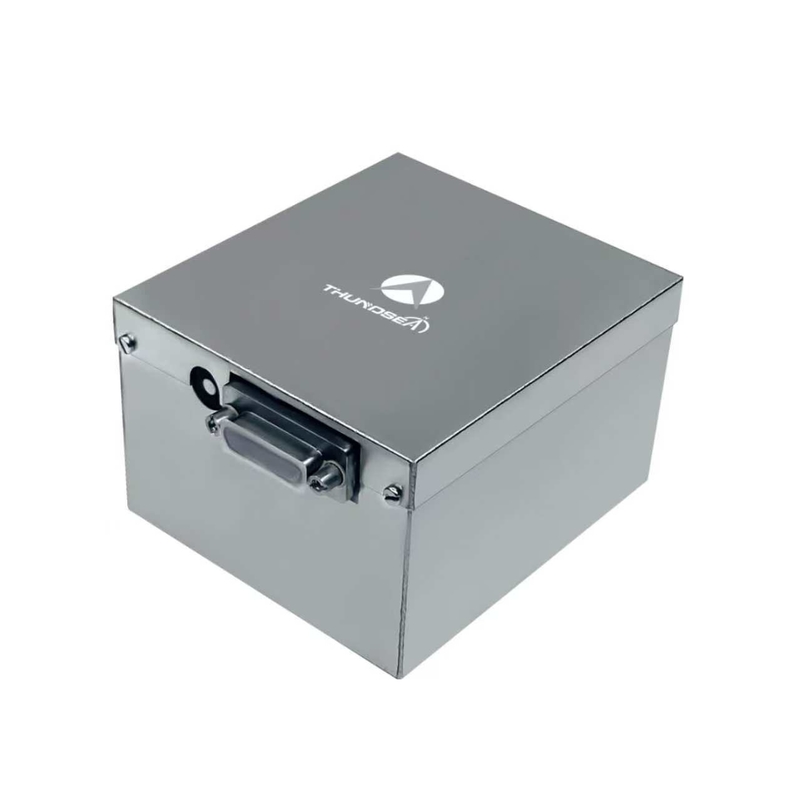

Large Image : High Precision Ring Laser Gyroscope TDLG50S

Product Details:

Place of Origin:	China
Brand Name:	NAVI OPTICS
Certification:	CCS
Model Number:	TDLG50S
Document:	TDLG50S Ring Laser Gyroscop...pe.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	one set
Packaging Details:	carton box
Delivery Time:	15days
Supply Ability:	30 set per month

Contact Now

High Precision Ring Laser Gyroscope TDLG50S

Description

Highlight:

High Precision Ring Laser Gyroscope

Ring Laser Gyroscope

High Precision TDLG50S Ring Laser Gyroscope

1 Introduction

Ring laser gyroscope to the Sagnac effect as the basic principle, through the detection of laser in the ring glass cavity interference phase difference measurement carrier angle increment, this type of gyroscope integration, reliability, environmental adaptability, stable performance, is currently the most commonly used at home and abroad high-precision inertial navigation equipment, the core sensor.

2 Application

Suitable for inertial navigation equipment and attitude reference equipment in high-end fields such as spaceships, airplanes, artificial satellites, vehicles, ships, submarines and so on.

3 Characteristics

Light path and circuit are encapsulated in one unit, simple structure and easy installation;
Small size, light weight, easy integration and controllable power consumption
High reliability, shock and vibration resistance, and strong environmental adaptability;
Wide dynamic response bandwidth, digital signal output.

4 Main parameters

Performance	Bias stability (1σ)	0.015°/h~0.006°/h
	Zero bias repeatability (1σ)	0.005°/h~0.003°/h
	ARW(Angular random walk	0.003°/√hr~0.0015°/√hr
	Scale factor error (1σ)	≤5ppm
	Dynamic Range	≥±400°/s
	Bandwidth	＞200Hz
Electrical Interface	Turn on time	＜5s
	Output signal format	TTL
	Built in self-test	Yes
	Output signal update rate	1Hz
	Output signal baud rate	115200
	Vibration shock	75g, half sine, 6ms
	Operating temperature	- 40℃ ~ + 70℃
	Storage temperature	- 55℃ ~ + 85℃
Physical Specifications	Power supply	±15V,±5V
	Connector (25 pins)	J30JM-25ZKP
	Power consumption	≤3W
	MTBF (per MIL-HDBK-217-F)	＞10000hr
	Weight	0.64kg
	Dimensions	90mm×73mm×51mm
