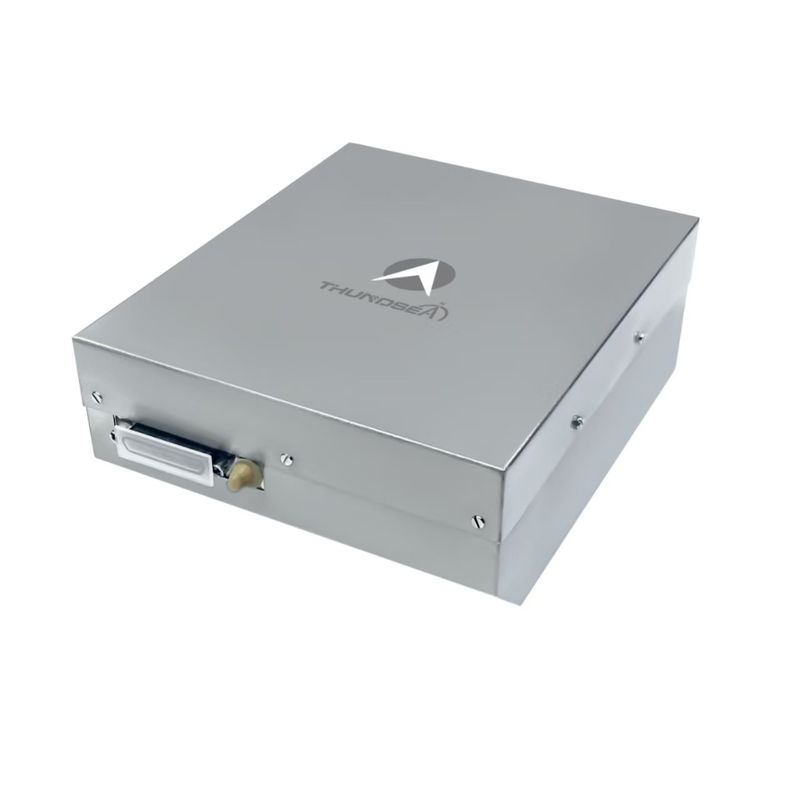

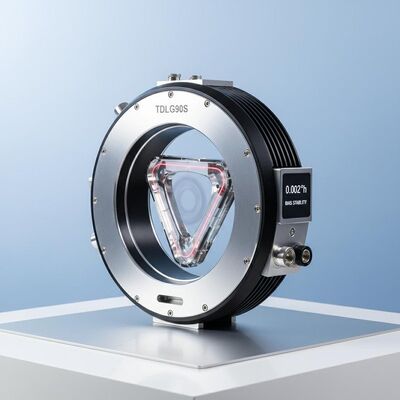

High Precision TDLG90S Ring Laser Gyroscope
1 Introduction
The ring laser gyroscope (RLG) operates on the Sagnac effect as its foundational principle, utilizing the interference phase difference between clockwise and counterclockwise laser beams within a closed resonant cavity to precisely measure angular increments of the carrier. This type of gyroscope demonstrates high integration level, exceptional reliability, strong environmental adaptability, and stable operational performance, making it a core sensor in high-precision inertial navigation systems widely adopted in both domestic and international applications.
2 Application
"Certified for integration with inertial navigation systems (INS) and attitude heading reference systems (AHRS) across aerospace platforms (spacecraft/aircraft/satellites), marine systems (surface vessels/submersibles), and terrestrial navigation modules (automotive/military vehicles)."
3 Characteristics
Light path and circuit are encapsulated in one unit, simple structure and easy installation;
Small size, light weight, easy integration and controllable power consumption
High reliability, shock and vibration resistance, and strong environmental adaptability;
Wide dynamic response bandwidth, digital signal output.
4 Main parameters
|
Performance |
Bias stability (1σ) |
0.004°/h~0.002°/h |
|
Zero bias repeatability (1σ) |
0.002°/h~0.001°/h |
|
|
ARW(Angular random walk |
0.0007°/√hr~0.0004°/√hr |
|
|
Scale factor error (1σ) |
≤2ppm |
|
|
Dynamic Range |
≥±400°/s |
|
|
Bandwidth |
＞200Hz |
|
|
Electrical Interface |
Turn on time |
＜5s |
|
Output signal format |
TTL |
|
|
Built in self-test |
Yes |
|
|
Output signal update rate |
1Hz |
|
|
Output signal baud rate |
115200 |
|
|
Vibration shock |
75g, half sine, 6ms |
|
|
Operating temperature |
- 40℃ ~ + 70℃ |
|
|
Storage temperature |
- 55℃ ~ + 85℃ |
|
|
Physical Specifications |
Power supply |
±15V,±5V |
|
Connector (25 pins) |
J30JM-37ZKP36 |
|
|
Power consumption |
≤3W |
|
|
MTBF (per MIL-HDBK-217-F) |
＞10000hr |
|
|
Weight |
2kg |
|
|
Dimensions |
151mm×126mm×57mm |
