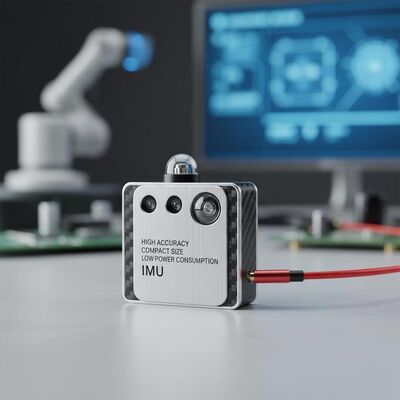

High Accuracy Compact Size Low Power Consumption Inertial Measurement Unit (IMU) for Navigation and Robotics
Key Attributes
Brand Name:
Navioptics
Model Number:
F61IMU
Place of Origin:
China
Certification:
CCS
Minimum Order Quantity:
one set
Supply Ability:
30 set per month
Delivery Time:
15 Days
Payment Terms:
T/T
Standard Packaging:
carton box
Product Summary
High-precision IMU with 0.005°/h bias stability, ±0.1°/s gyro accuracy, and ±0.01g accelerometer precision. Compact, lightweight (<10g), operates from -40°C to +85°C. Ideal for navigation, robotics, drones, and automotive applications.
Product Custom Attributes
Highlight
FURUNO safe return to port system
,All in one sms ship management system
,powerboats data organizer
Display Type:
Color LCD
Power Usage:
15 VDC CAN Bus
Zero Bias Repeatability:
0.005°/h
Outputdata:
Angular Velocity, Linear Acceleration, Magnetic Field
Updaterate:
Up To 1 KHz
Type:
Sensor
Accuracy:
±0.1°/s (gyroscope), ±0.01g (accelerometer)
Applications:
Navigation, Robotics, Drones, Automotive, VR/AR
Dimensions:
Varies By Model, Typically 20mm X 20mm X 10mm
Powersupplyvoltage:
3.3V Or 5V
Weight:
Typically Less Than 10 Grams
Outputformat:
Digital (16-bit Or 32-bit Data)
Input Range:
400°/s
Calibration:
Factory Calibrated, Supports In-field Calibration
Random Walk Coefficient:
0.01°/√h
Operatingtemperaturerange:
-40°C To +85°C
Components:
Accelerometer, Gyroscope, Magnetometer (optional)
Product Description

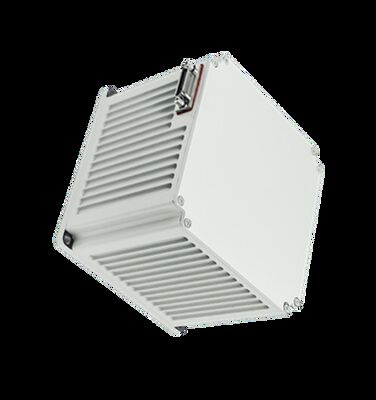

Inertial Measurement Unit
The Inertial Measurement Unit (IMU) features a compact size, light weight, low power consumption, and high precision. Designed for pure strapdown, single-axis, and dual-axis modulated inertial navigation systems, it meets the demand for small-size, high-precision inertial navigation equipment in new unmanned platforms, underwater/torpedo weaponry, as well as land-based and airborne weapon platforms. This unit provides dynamic measurement of carrier angular and linear motion information.
Technical Specifications
Gyro Performance
| Parameter | Specification | Conditions |
|---|---|---|
| Zero Bias Stability | 0.03°/h | 100s measurement |
| Zero Bias Stability at Variable Temperature | 0.1°/h | Temperature variation rate 1℃/min (-40℃~60℃) |
| Scale Factor Nonlinearity | ≤20ppm | |
| Random Walk Coefficient | 0.005°/½h | |
| Input Range | 400°/s |
Accelerometer Performance
| Parameter | Specification | Conditions |
|---|---|---|
| Zero Bias Repeatability | 50μg | |
| Bias Temperature Sensitivity | 50μg/℃ | |
| Scale Factor Repeatability | 50ppm | |
| Scale Factor Temperature Sensitivity | 50ppm/℃ | |
| Input Range | ±20g |
Environmental & Physical Characteristics
| Parameter | Specification | Notes |
|---|---|---|
| Operating Temperature | -40℃～60℃ | |
| Storage Temperature | -45℃～70℃ | |
| Power Supply | 18～36V(DC) | |
| Stable Power Consumption | ≤16W | Startup power consumption ≤20W |
| Mounting Hole Diameter | 4-Φ4.5mm | |
| Dimensions | 110*110*100 mm |
