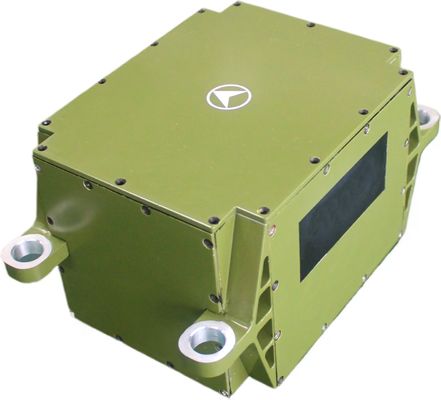

Small Size High-precision TDL45IMU Laser Inertial Unit for Large Impact and Vibration Environments
Key Attributes
Brand Name:
NAVI OPTICS
Model Number:
TDL45IMU
Place of Origin:
China
Certification:
CCS
Minimum Order Quantity:
one set
Payment Terms:
L/C,T/T
Standard Packaging:
carton box
Product Summary
Small Size High-precision TDL45IMU Laser Inertial Unit This compact laser inertial unit offers exceptional performance with small size, light weight, low power consumption, and high accuracy. Featuring eight-point vibration reduction, it withstands high-impact, high-vibration environments and ...
Product Custom Attributes
Highlight
small high-precision TDL45IMU inertial unit
,laser inertial unit large impact resistant
,IMU measurement unit large vibration proof
Zero Bias Stability (100s):
0.01°/h
Zero Bias Repeatability:
0.005°/h
Full Temperature Scale Factor:
≤5ppm
Random Walk Coefficient:
0.002°/h
Input Range:
400°/s
Product Description
Small Size High-precision TDL45IMU Laser Inertial Unit
This compact laser inertial unit offers exceptional performance with small size, light weight, low power consumption, and high accuracy. Featuring eight-point vibration reduction, it withstands high-impact, high-vibration environments and supports pure strapdown design for various unmanned platforms and weapon systems.
Product Overview
Designed for demanding applications, the TDL45IMU provides dynamic measurement of carrier angular motion and linear motion information. Ideal for unmanned platforms, water/torpedo weapons, and land, airborne, and missile weapon platforms requiring compact, high-precision inertial navigation.
Performance Specifications
Gyroscope Performance
| Parameter | Specification | Value | Notes |
|---|---|---|---|
| Zero Bias Stability (100s) | Zero Bias Indicator | 0.01°/h | |
| Zero Bias Repeatability | 0.005°/h | ||
| Full Temperature Scale Factor | Scale Factor | ≤5ppm | |
| Random Walk Coefficient | Other Indicators | 0.002°/h | |
| Input Range | 400°/s |
Accelerometer Performance
| Parameter | Specification | Value | Notes |
|---|---|---|---|
| Deviation Monthly Comprehensive Error | Deviation Index | 20μg | |
| Zero Bias Temperature Sensitivity | Zero Bias Indicator | 20μg/℃ | |
| Scale Factor Monthly Comprehensive Error | Scale Factor | 20ppm | |
| Scale Factor Temperature Sensitivity | 20ppm/℃ | ||
| Input Range | Range Indicator | ±20g |
Environmental & General Specifications
| Parameter | Specification | Value | Notes |
|---|---|---|---|
| Operation Temperature | Environmental Performance | -40℃～60℃ | |
| Storage Temperature | -45℃～70℃ | ||
| Power Supply | General Requirements | 18～36V(DC) | |
| Stable Power Consumption | ≤20W | Startup power consumption ≤ 25W |
Electrical Interfaces
| Pin | Connectivity | Signal Name | Signal Characteristics |
|---|---|---|---|
| 1,12 | External power supply | PCS power supply positive | 24V |
| 2,13 | PCS power supply ground | Power Ground | |
| 3 | 200Hz signal output | IMU_TX1+ | IMU data output positive |
| 14 | IMU_TX1- | IMU data output negative | |
| 6 | Synchronization signal | IMU_SYN+ | IMU synchronization signal positive |
| 17 | IMU_SYN- | IMU synchronization signal negative |
Structural Appearance and Dimensions
