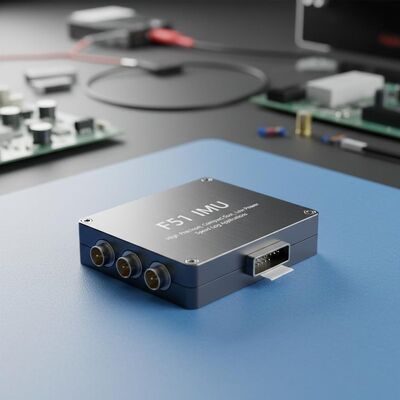

F51 IMU Inertial Measurement Unit with High Precision Compact Size and Low Power Consumption for Speed Log Applications
Key Attributes
Brand Name:
Navioprics
Model Number:
F51 IMU
Place of Origin:
China
Certification:
CCS
Minimum Order Quantity:
one set
Supply Ability:
30 set per month
Delivery Time:
15 Days
Payment Terms:
T/T
Standard Packaging:
carton box
Product Summary
F51 IMU: High-precision inertial measurement unit with 0.04°/h gyro stability and ±20g accelerometer range. Compact, lightweight design (≤1500g) with low power consumption (≤16W), ideal for unmanned platforms and weapon systems.
Product Custom Attributes
Highlight
0.25° marine satellite compass
,Radar furuno sat compass
,ECDIS furuno compass
Display Type:
Color LCD
Power Usage:
12-24 VDC
Display Size:
4.3 Inches
Receiver Type:
33 Inch Tri-Antenna
Weight:
Lightweight, Approx. 1-2 Kg
Transmission Frequency:
1605.0 ～ 27500.0kHz(100Hz Steps)
Mkd:
1 Set
Water Depth:
Deeper Than 3 M
Data Cable:
1 Pcs.
Rms Interface:
Built In
Distance Run:
0-999,999.99 NM,resettable To Any Value.
Components:
Accelerometer, Gyroscope, Magnetometer
Strobe Light:
24 Flashes Per Minute (>1cd)
Data Storage Capacity:
2G
Sensitivity:
Less Than 6 DB V At SINAD 20 DB
Antenna Type:
Open Array
Operating Method:
Dual Beam, Pulse Doppler Sensing.
Working Temperature:
﹣10℃~50℃
Test:
-10 And 40 Kn
Product Description
F51 IMU Inertial Measurement Unit
The F51 IMU Inertial Measurement Unit features a compact design, light weight, low power consumption, and high precision. This advanced measurement unit is engineered for pure strapdown, single-axis, and dual-axis modulated inertial navigation systems, meeting the demanding requirements for small-size, high-precision inertial navigation equipment in modern unmanned platforms, underwater/torpedo weaponry, and land-based/airborne weapon platforms. It provides dynamic measurement of carrier angular and linear motion information with exceptional accuracy.
Technical Specifications
| Component | Parameter | Description | Value | Notes |
|---|---|---|---|---|
| Gyro | Zero Bias | Bias Stability (100s) | 0.04°/h | |
| Zero Bias | Bias Stability at Variable Temperature (100s) | 0.1°/h | Temperature Variation Rate 1℃/min (-40℃~60℃) | |
| Scaling Factor | Scale Factor Nonlinearity | ≤20ppm | ||
| Other Indicators | Random Walk Coefficient | 0.005°/½h | ||
| Range | Input Range | 400°/s | ||
| Accelerometer | Deviation | Zero Bias Repeatability | 50μg | |
| Zero Bias | Bias Temperature Sensitivity | 50μg/℃ | ||
| Scaling Factor | Scale Factor Repeatability | 50ppm | ||
| Scaling Factor | Scale Factor Temperature Sensitivity | 50ppm/℃ | ||
| Range Indicators | Input Range | ±20g | ||
| General Characteristics | Environmental Performance | Operating Temperature | -40℃～60℃ | |
| Environmental Performance | Storage Temperature | -45℃～70℃ | ||
| Power Requirements | Power Supply | 18～36V(DC) | ||
| Power Requirements | Stable Power Consumption | ≤16W | Startup Power Consumption ≤20W | |
| Mechanical | Mounting Hole Diameter | 4-Φ4.3mm | ||
| Dimensions | Size | 98*96*89.5mm | ||
| Weight | Mass | ≤1500g | ||
