High Accuracy Compact Size Low Power Consumption Inertial Measurement Unit (IMU) for Aerospace and Robotics
Key Attributes
Brand Name:
The Inertial Measurement Unit (IMU)
Model Number:
F41IMU
Place of Origin:
China
Certification:
CCS
Minimum Order Quantity:
one set
Supply Ability:
30 set per month
Delivery Time:
15 Days
Payment Terms:
T/T
Standard Packaging:
carton box
Product Summary
High-precision IMU with 0.02°/√h random walk, 400°/s range, -40°C to +85°C operation. Compact, low power (≤8W), ideal for aerospace, robotics, drones. Factory calibrated with digital output.
Product Custom Attributes
Highlight
furuno satellite speed log
,doppler sonar jrc speed log
,full imo furuno doppler speed log
Ground Tracking Inaccuracy:
Ship's Speed (less Than 1 Kn)： ±0.01 M/s, Whichever Is Greater Ship's Speed (more Than 1 Kn)： ±1.0 % Or ±0.1 Kn, Whichever Is Greater
Water Tracking Inaccuracy:
±1.0 % Or ±0.1 Kn, Whichever Is Greater
Depth Range:
1-200 M
Transducer Diameter:
Ø112
Gate Valve Diameter:
Ø125
Gate Valve Weight:
120 Kg
Input Range:
400°/s
Interface:
I2C, SPI, UART
Dimensions:
Varies By Model, Typically In Mm Scale
Applications:
Aerospace, Robotics, Smartphones, Drones, Automotive
Operating Temperature Range:
-40°C To +85°C
Components:
Accelerometer, Gyroscope, Magnetometer
Random Walk Coefficient:
0.02°/√h
Type:
Sensor
Degrees Of Freedom:
6-DOF Or 9-DOF
Calibration:
Factory Calibrated Or User Calibratable
Zero Bias Repeatability:
0.005°/h
Output:
Digital Or Analog Signals
Output Data Format:
Quaternion, Euler Angles, Raw Sensor Data
Measurement:
Acceleration, Angular Velocity, Magnetic Field
Weight:
Typically Less Than 50 Grams
Product Description
Inertial Measurement Unit (IMU)
The Inertial Measurement Unit (IMU) features a compact size, light weight, low power consumption, and high precision. It enables the design of pure strapdown, single-axis, and dual-axis modulated inertial navigation systems, meeting the demand for small-size, high-precision inertial navigation equipment in new unmanned platforms, underwater/torpedo weaponry, and land-based/airborne weapon platforms. The unit provides dynamic measurement of carrier angular and linear motion information.
Technical Specifications
| Component | Parameter | Description | Value | Notes |
|---|---|---|---|---|
| Gyro | Zero Bias | Bias Stability (10s) | 0.3°/h | |
| Zero Bias | Bias Stability at Variable Temperature (100s) | 0.5°/h | ||
| Scaling Factor | Scale Factor Nonlinearity | ≤20ppm | ||
| Other Indicators | Random Walk Coefficient | 0.02°/½h | ||
| Range | Input Range | 400°/s | ||
| Accelerometer | Deviation | Zero Bias Repeatability | 0.3mg | |
| Zero Bias | Bias Temperature Sensitivity | 50μg/℃ | ||
| Scaling Factor | Scale Factor Repeatability | 300ppm | ||
| Scaling Factor | Scale Factor Temperature Sensitivity | 20ppm/℃ | ||
| Accelerometer | Range Indicators | Input Range | ±20g | |
| Characteristics | Environmental Performance | Operating Temperature | -40℃～60℃ | |
| Environmental Performance | Storage Temperature | -45℃～70℃ | ||
| General Requirements | Power | Power Supply | 18～36V(DC) | |
| Power | Stable Power Consumption | ≤8W | Startup Power Consumption ≤15W | |
| Mechanical | Mounting Hole Diameter | 4-Φ4.5mm | ||
| Dimensions | Size | 70.3*70.3*53 mm | ||
| Weight | Mass | ≤500g |

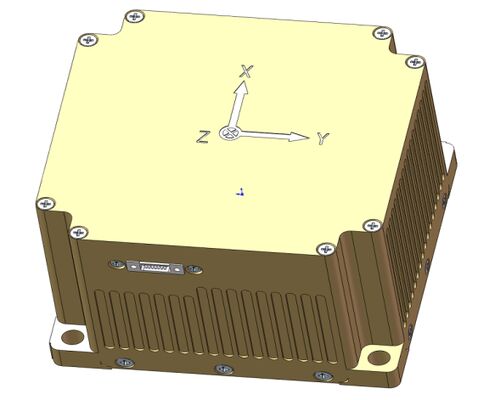

Structural Diagram
