Aviation Navigation TDF41A Airborne Optical Gyro Inertial Navigation System with ≤500μg Bias Repeatability, ≤0.03°/√hr Random Walk, and ≤0.2° Pitch & Roll Accuracy
Key Attributes
Brand Name:
NAVI OPTICS
Model Number:
TDF41A
Place of Origin:
CHINA
Certification:
CCS
Minimum Order Quantity:
one set
Supply Ability:
10 sets per month
Delivery Time:
5-8 work days
Payment Terms:
L/C,T/T
Standard Packaging:
Carton box
Product Summary
TDF41A airborne optical gyro inertial navigation system delivers ≤1nm/10min position accuracy, ≤0.2° pitch/roll precision, and supports multi-sensor fusion. With 20,000+ hours MTBF, -40℃~60℃ operating range, and compact 500g design, it's ideal for fixed/rotary-wing UAVs.
Product Custom Attributes
Highlight
TDF41A
,Airborne Optical Gyro Inertial Navigation
,Aviation Navigation
Months Bias Repeatability:
≤500μg
Months Scale Factor Accuracy:
≤500ppm
Bias Repeatability:
≤0.1°/hr
Scale Factor Accuracy:
≤300ppm
Random Walk:
≤0.03°/√hr
Pitch & Roll Accuracy:
≤0.2°
Heading Accuracy:
≤1°sec(L)
Product Description

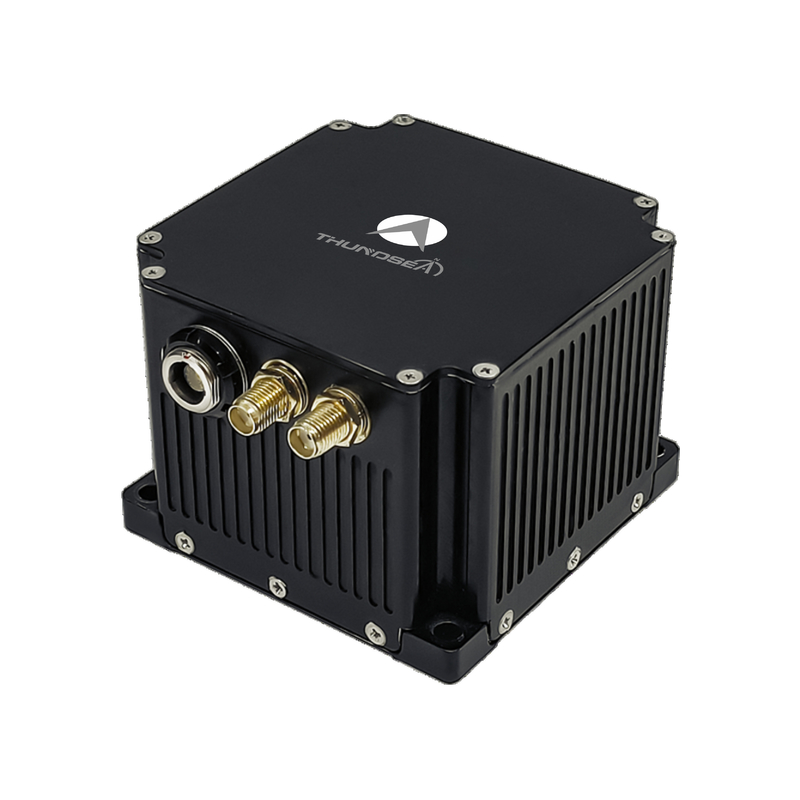

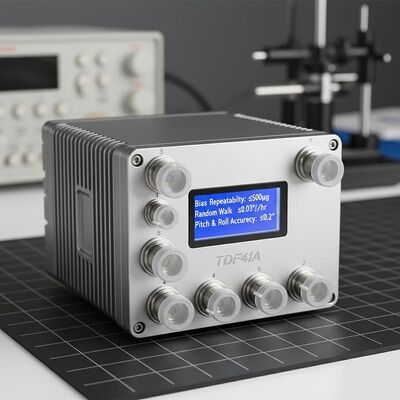

Aviation Navigation TDF41A Airborne Optical Gyro Inertial Navigation
Product Overview
The TDF41A airborne optical gyro inertial navigation system utilizes optical gyros and quartz accelerometers as core sensors, employing either strapdown or dithered inertial navigation architecture. With advanced high-speed navigation software, it delivers real-time navigation data and supports integration with satellite, celestial, altimeter, radio, and visual navigation systems based on user requirements.
Application Fields
Suitable for fixed-wing UAVs, rotary-wing UAVs, and specialized airborne vehicles.
Performance Characteristics
- Capable of alignment on ground-based vibrating platforms and in-flight alignment
- Supports switching between self-alignment, moving-base alignment, and transfer alignment
- Multi-sensor fusion capability with satellite, celestial, altimeter, radio, and visual navigation data
- Integrated system fault detection and alarm functions
Technical Specifications
| Parameter Type | Specification |
|---|---|
| Accelerometer Months Bias Repeatability | ≤500μg |
| Accelerometer Months Scale Factor Accuracy | ≤500ppm |
| Gyro Bias Repeatability | ≤0.1°/hr |
| Gyro Scale Factor Accuracy | ≤300ppm |
| Gyro Random Walk | ≤0.03°/√hr |
| Position Accuracy (Pure Inertia) | ≤1nm/10min |
| Position Accuracy (INS + Satellite) | Better than satellite accuracy |
| Velocity Accuracy (INS + Satellite) | ≤0.2m/s |
| Angular Rate | ≥±400°/sec |
| Angular Acceleration | 100000°/sec² |
| Acceleration | ＞40g |
| Angular Attitude | Any Orientation |
| Alignment Time | ≤5min |
| Input/Output | 2 RS422 Serial Ports |
| AHRS Heading Accuracy (Satellite) | ≤1°sec(L) |
| AHRS Pitch & Roll Accuracy (Satellite) | ≤0.2° |
| Power Consumption | ＜10W |
| Dimensions | 70*70*53 mm |
| Weight | ＜500g |
| Operating Temperature | -40℃ to +60℃ |
| Shock Resistance | 15g, Half-sine wave 11ms |
| Input Voltage | DC24V(±25%) |
| Cooling Method | Conduction to mounting plate |
| Vibration Resistance | 20-2000Hz, 6.06g |
| MTBF | ＞20000 hours |
Related Products
Stable Performance High Reliability Universal Marine Fiber Optic Inertial Navigation System TDF61A
TDF61A marine fiber optic INS delivers stable performance with ≤4nm/h accuracy, supports multiple navigation modes, and withstands extreme environments. Features 20,000+ hours MTBF, compact design, and comprehensive interfaces for USVs/UUVs.
Stable Performance High Reliability TDF121A Universal Marine Fiber Optic Inertial Navigation System
TDF121A marine fiber optic INS delivers high reliability with 0.003°/hr gyro bias, 25g acceleration tolerance, and 20,000+ hours MTBF. Features Ethernet/RS422 interfaces, supports inertial/GNSS/DVL integration for USVs/UUVs in extreme environments.
Model DINS-100 High Precision Dual-Axis Rotary Laser Gyro Inertial Navigation System with Military Standard
Model DINS-100: High-precision dual-axis rotary laser gyro INS with 2nm/10d positioning accuracy, 0.005° attitude precision, and military-grade durability. Features autonomous calibration, full-temperature compensation, and excellent environmental adaptability for marine and missile applications.
Land Force Navigation TDL45C Vehicle Mounted Optical Gyro Positioning Equipment with ≤0.003°/√hr Random Walk, ≥±400°/sec Angular Rate and ＞15000 hours MTBF
TDL45C vehicle-mounted optical gyro system delivers ≤5m positioning accuracy with 15,000+ hours MTBF. Features ±400°/sec angular rate, -40℃ to 60℃ operation, and multiple navigation modes for military and industrial vehicles.
Aviation Navigation TDF46A Airborne Optical Gyro Inertial Navigation System with ≤0.008°/hr Bias Repeatability, ＞20000 hours MTBF, and ≤20μg Months Bias Repeatability
TDF46A airborne optical gyro inertial navigation system delivers ≤0.8nm/h position accuracy with multi-sensor fusion (GNSS, celestial, visual). Features 20,000+ hours MTBF, -40℃~60℃ operation, and supports ground/in-flight alignment for UAVs and specialized aircraft.
Stable Performance High Reliability TDF99A Universal Marine Fiber Optic Inertial Navigation System with Real-time Navigation Data
TDF99A marine fiber optic INS delivers ≤1.2kn speed accuracy & 20,000+ hours MTBF. Features laser gyros, quartz accelerometers, and supports inertial/GNSS/DVL integration for USVs/UUVs in extreme environments.
High Reliability Universal Marine Fiber Optic Inertial Navigation System for USVs and UUVs
TDF71A marine fiber optic INS delivers high reliability with 0.01°/hr gyro bias, ≤2nm/h position accuracy, and 20,000+ hours MTBF. Features compact design, low power consumption, and multiple navigation modes for USVs/UUVs in extreme environments.
Model TDF62A Universal Marine Fiber Optic Inertial Navigation System with Stable Performance High Reliability and ≤15min Alignment Time
TDF62A marine fiber optic INS delivers stable navigation with 0.04° heading accuracy, ≤15min alignment, and 20,000+ hours MTBF. Ideal for USVs/UUVs in harsh environments with Ethernet/RS422 interfaces.
