Aviation Navigation TDF46A Airborne Optical Gyro Inertial Navigation System with ≤0.008°/hr Bias Repeatability, ＞20000 hours MTBF, and ≤20μg Months Bias Repeatability
Key Attributes
Brand Name:
NAVI OPTICS
Model Number:
TDF46A
Place of Origin:
China
Certification:
CCS
Minimum Order Quantity:
one set
Supply Ability:
10 sets per month
Delivery Time:
5-8 work days
Payment Terms:
L/C,T/T
Standard Packaging:
Carton box
Product Summary
TDF46A airborne optical gyro inertial navigation system delivers ≤0.8nm/h position accuracy with multi-sensor fusion (GNSS, celestial, visual). Features 20,000+ hours MTBF, -40℃~60℃ operation, and supports ground/in-flight alignment for UAVs and specialized aircraft.
Product Custom Attributes
Highlight
Airborne Optical Gyro Inertial Navigation
,ins system
Months Bias Repeatability:
≤20μg
Months Scale Factor Accuracy:
≤20ppm
Bias Repeatability:
≤0.008°/hr
Scale Factor Accuracy:
≤20ppm
Random Walk:
≤0.003°/√hr
Vibration:
20~2000Hz,6.06g
MTBF:
＞20000 Hours
Product Description

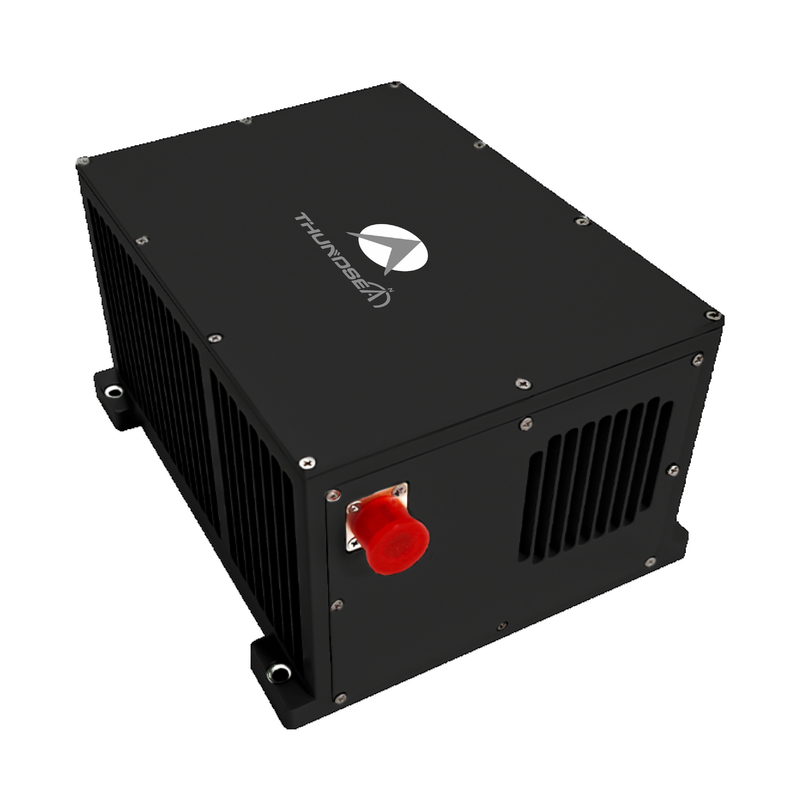

Aviation Navigation TDF46A Airborne Optical Gyro Inertial Navigation
The TDF46A airborne optical gyro inertial navigation system employs fiber-optic gyroscopes (FOGs) and high-precision quartz accelerometers as core sensing elements. Operating under strapdown or modulated system architectures, it utilizes advanced navigation algorithms processed through embedded computing units to achieve real-time inertial parameter calculation at refresh rates exceeding 200Hz.
Multi-Sensor Fusion Capabilities
This system seamlessly integrates satellite navigation (GNSS), celestial positioning, barometric altimetry, radio navigation, and visual odometry inputs through adaptive Kalman filtering techniques. Operational modes can be dynamically configured between pure inertial navigation and hybrid augmentation states.
Application Fields
- Fixed-wing UAVs
- Rotary-wing UAVs
- Specialized airborne vehicles
Performance Characteristics
- Capable of alignment on ground-based vibrating platforms and in-flight alignment
- Supports switching between self-alignment, moving-base alignment, and transfer alignment
- Multi-sensor fusion incorporating satellite, celestial, altimeter, radio, and visual navigation data
- Equipped with system fault detection and alarm functions
Technical Specifications
| Parameter Type | Specification | Value |
|---|---|---|
| Accelerometer | Months Bias Repeatability | ≤20μg |
| Months Scale Factor Accuracy | ≤20ppm | |
| Gyro | Bias Repeatability | ≤0.008°/hr |
| Scale Factor Accuracy | ≤20ppm | |
| Random walk | ≤0.003°/√hr | |
| Features | Position accuracy (Pure inertia) | ≤0.8nm/1h |
| Position accuracy (Inertial navigation satellite combination) | Better than satellite accuracy | |
| Velocity accuracy (Pure inertia) | ≤1.0m/s | |
| Velocity accuracy (Inertial navigation satellite combination) | ≤0.2m/s | |
| Performance | Angular Rate | ≥±400°/sec |
| Angular Acceleration | 100000°/sec² | |
| Acceleration | ＞25g | |
| Angular Attitude | Any Orientation | |
| Alignment time | ≤8min | |
| Input/output | 3 RS422 full-duplex serial ports, 1 100M Ethernet port | |
| AHRS Applications | Heading Accuracy (Pure inertia) | ≤0.1°sec(L) |
| Heading Accuracy (Satellite navigation combination) | ≤0.05°sec(L) | |
| Pitch & Roll Accuracy (Pure inertia) | ≤0.03° | |
| Pitch & Roll Accuracy (Satellite navigation combination) | ≤0.015° | |
| Characteristics | Power consumption | ＜20W |
| Dimensions | 195*160*108 | |
| Weight | ＜3.9kg | |
| Temperature | -40℃~60℃ | |
| Shock | 15g, Half-sine wave 11ms | |
| Input Voltage | DC24V(±25%) | |
| Cooling | Conduction to mounting plate | |
| Vibration | 20~2000Hz, 6.06g | |
| MTBF | ＞20000 hours |
