High-performance GLR-90M Inertial Navigation System with Ring Laser Gyro Technology, Combat Proven, and Anti-disturbance Self-alignment
Key Attributes
Brand Name:
NAVI OPTICS
Model Number:
GLR-90M
Place of Origin:
China
Certification:
CCS
Minimum Order Quantity:
one set
Payment Terms:
T/T
Standard Packaging:
Carton box
Product Summary
GLR-90M Gyro Compass & INS: Combat-proven ring laser gyro technology with self-alignment while moving. Delivers 0.01° heading accuracy, operates in -40°C to 70°C, and accepts GPS/GNSS inputs. Ideal for naval, missile, and land targeting applications.
Product Custom Attributes
Highlight
GLR-90M gyro compass
,inertial navigation system with warranty
,high-performance gyro compass
Product Description

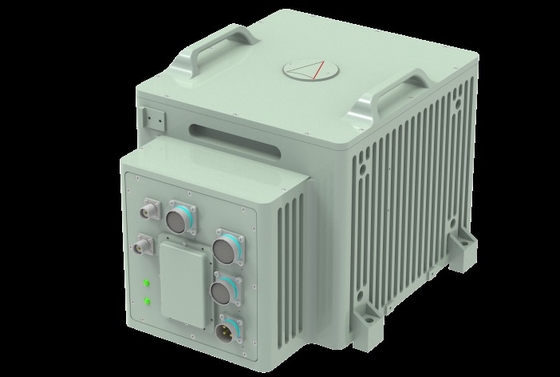

High-performance GLR-90M Type Gyro Compass and Inertial Navigation System
The GLR-90M Type Gyro Compass and Inertial Navigation System is a high-performance inertial navigation unit based on strap down digital ring-laser-gyro technology. Utilizing three single-axis Type-90 ring laser gyroscopes and quartz flexible accelerometers, this system delivers accurate data even in harsh combat situations.
Key Characteristics
- Advanced ring laser gyro technology
- Combat proven reliability
- AHRS+INS integrated in a single unit
- Anti-disturbance self-alignment while moving
- Multiple connection options: GPS/GNSS/Speed LOG DVL/USBL input
- Configurable navigation modes: INS/Integrated Navigation
- Compatible with all types of carriers
Applications
- Navy ships and vessels
- Missile and aircraft systems
- Land Army pointing and targeting
- Submarine navigation
Performance Specifications
| Parameter | Specification |
|---|---|
| Setting time | 10 mins (data available) 30 mins (full attitude performance) |
| Position without aiding | 1nm/4h, CFP 50 |
| Velocity without aiding | 0.8m/s, 1σ |
| Roll & pitch without aiding | 0.01 deg, 1σ |
| Heading without aiding | 0.01*sec(φ)deg, 1σ |
| Roll & pitch with GPS aiding | 0.005deg/h, 1σ |
| Heading with GPS aiding | 0.008deg, 1σ |
| Rotation rate range | ±400deg/s |
| Acceleration range | ±15g |
Environmental Specifications
| Parameter | Specification |
|---|---|
| Working temperature | -40°C to 70°C |
| Storage temperature | -55°C to 85°C |
| Vibration | 0.04g²/hz @ 20-2000hz |
| Shock (working condition) | 30g @ 6m/s |
| Shock (survival) | 50g @ 11m/s |
Electrical & Physical Specifications
| Parameter | Specification |
|---|---|
| Power Supply | 28V DC |
| Interface | RS422/RS232/CAN/Ethernet |
| Size (W*D*H) | 328*280*225mm |
| Weight | ≤21kg |
| Power Consumption | ≤35W |
