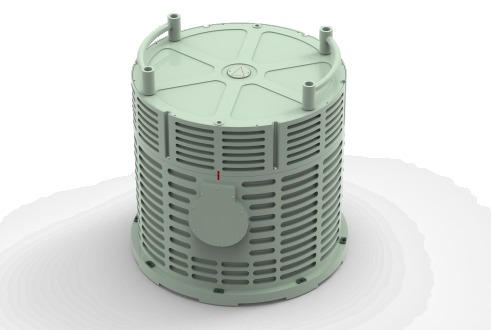

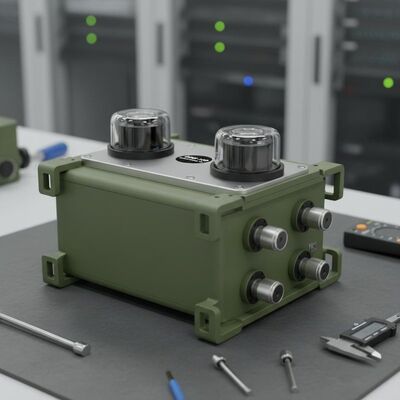

Model DINS-100 High Precision Dual-Axis Rotary Laser Gyro Inertial Navigation System with Military Standard
Key Attributes
Brand Name:
NAVI OPTICS
Model Number:
DINS-100
Place of Origin:
China
Certification:
CCS
Minimum Order Quantity:
one set
Payment Terms:
T/T
Standard Packaging:
Carton box
Product Summary
Model DINS-100: High-precision dual-axis rotary laser gyro INS with 2nm/10d positioning accuracy, 0.005° attitude precision, and military-grade durability. Features autonomous calibration, full-temperature compensation, and excellent environmental adaptability for marine and missile applications.
Product Custom Attributes
Highlight
dual-axis rotary laser gyro
,high precision inertial navigation system
,laser gyro navigation system with warranty
Settling Time:
6h
Position:
2nm/10d, Peak
Velocity:
0.5m/s， 1σ
Attitude:
0.005deg, 1σ
Heading:
0.008×sec(Lat) Deg, 1σ
Heave:
5cm Or 5%
Working Temperature:
-40℃~+55℃
Storage Temperature:
-55℃~+70℃
Dimensions (W X D X H):
φ550×500 Mm
Weight:
≤60kg
Product Description
Model DINS-100 High Precision Dual-Axis Rotary Laser Gyro Inertial Navigation System
DINS 100 dual-axis rotary laser gyro inertial navigation system is a high-performance inertial navigation and measurement equipment designed for demanding applications requiring exceptional precision and reliability.
System Overview
The system incorporates 90-type two-frequency machine shaking laser gyroscope and quartz flexure accelerometer technologies. Advanced high-precision error calibration, temperature compensation, and dual-axis rotary on-line autonomous calibration with error self-compensation technologies significantly enhance system performance.
Through comprehensive electromagnetic shielding design, thermal balance optimization, vibration modal analysis, sealing design, and strict manufacturing processes, the system delivers excellent environmental adaptability for mission-critical operations.
Key Features
- High precision 90-type two-frequency machine shake laser gyroscope
- Dual-axis rotational self-calibration and error self-compensation
- Static base and moving base initial alignment capabilities
- Comprehensive error parameter calibration and compensation across full temperature range
- Preset GNSS/odometer/trip-meter interface compatibility
- Configurable for different navigation modes
- Excellent environmental adaptability
- Military standard compliance
Applications
- Ship navigation systems
- Underwater submarine navigation
- Positioning and orientation of missile launch vehicles
- High-precision attitude measurement
Performance Specifications
| Start-up time | 6 hours |
| Pure Inertial Position | 2nm/10d, peak |
| Pure Inertial Velocity | 0.5m/s, 1σ |
| Pure Inertial Attitude | 0.005deg, 1σ |
| Pure Inertial Heading | 0.008*sec(Lat) deg, 1σ |
| Heave | 5cm or 5% |
Measuring Range
| Angular Velocity | ±400deg/s |
| Acceleration | ±20g |
Working Environment
| Working Temperature | -40℃ to +55℃ |
| Storage Temperature | -55℃ to +70℃ |
| Vibration | 0.04g²/hz @ 20-2000hz |
| Shock Resistance | Normal operation at 30g @ 6ms / No damage at 50g @ 11ms |
Electrical Characteristics
| Operating Voltage | 28VDC |
| Power Consumption | ≤200W |
| Communication Interface | RS422/RS232/CAN/Ethernet |
Physical Characteristics
| Dimensions (W * D * H) | φ550 * 500 mm |
| Weight | ≤60kg |
Related Products
Stable Performance High Reliability Universal Marine Fiber Optic Inertial Navigation System TDF61A
TDF61A marine fiber optic INS delivers stable performance with ≤4nm/h accuracy, supports multiple navigation modes, and withstands extreme environments. Features 20,000+ hours MTBF, compact design, and comprehensive interfaces for USVs/UUVs.
Stable Performance High Reliability TDF121A Universal Marine Fiber Optic Inertial Navigation System
TDF121A marine fiber optic INS delivers high reliability with 0.003°/hr gyro bias, 25g acceleration tolerance, and 20,000+ hours MTBF. Features Ethernet/RS422 interfaces, supports inertial/GNSS/DVL integration for USVs/UUVs in extreme environments.
Land Force Navigation TDL45C Vehicle Mounted Optical Gyro Positioning Equipment with ≤0.003°/√hr Random Walk, ≥±400°/sec Angular Rate and ＞15000 hours MTBF
TDL45C vehicle-mounted optical gyro system delivers ≤5m positioning accuracy with 15,000+ hours MTBF. Features ±400°/sec angular rate, -40℃ to 60℃ operation, and multiple navigation modes for military and industrial vehicles.
Aviation Navigation TDF46A Airborne Optical Gyro Inertial Navigation System with ≤0.008°/hr Bias Repeatability, ＞20000 hours MTBF, and ≤20μg Months Bias Repeatability
TDF46A airborne optical gyro inertial navigation system delivers ≤0.8nm/h position accuracy with multi-sensor fusion (GNSS, celestial, visual). Features 20,000+ hours MTBF, -40℃~60℃ operation, and supports ground/in-flight alignment for UAVs and specialized aircraft.
Aviation Navigation TDF41A Airborne Optical Gyro Inertial Navigation System with ≤500μg Bias Repeatability, ≤0.03°/√hr Random Walk, and ≤0.2° Pitch & Roll Accuracy
TDF41A airborne optical gyro inertial navigation system delivers ≤1nm/10min position accuracy, ≤0.2° pitch/roll precision, and supports multi-sensor fusion. With 20,000+ hours MTBF, -40℃~60℃ operating range, and compact 500g design, it's ideal for fixed/rotary-wing UAVs.
Stable Performance High Reliability TDF99A Universal Marine Fiber Optic Inertial Navigation System with Real-time Navigation Data
TDF99A marine fiber optic INS delivers ≤1.2kn speed accuracy & 20,000+ hours MTBF. Features laser gyros, quartz accelerometers, and supports inertial/GNSS/DVL integration for USVs/UUVs in extreme environments.
High Reliability Universal Marine Fiber Optic Inertial Navigation System for USVs and UUVs
TDF71A marine fiber optic INS delivers high reliability with 0.01°/hr gyro bias, ≤2nm/h position accuracy, and 20,000+ hours MTBF. Features compact design, low power consumption, and multiple navigation modes for USVs/UUVs in extreme environments.
Model TDF62A Universal Marine Fiber Optic Inertial Navigation System with Stable Performance High Reliability and ≤15min Alignment Time
TDF62A marine fiber optic INS delivers stable navigation with 0.04° heading accuracy, ≤15min alignment, and 20,000+ hours MTBF. Ideal for USVs/UUVs in harsh environments with Ethernet/RS422 interfaces.
