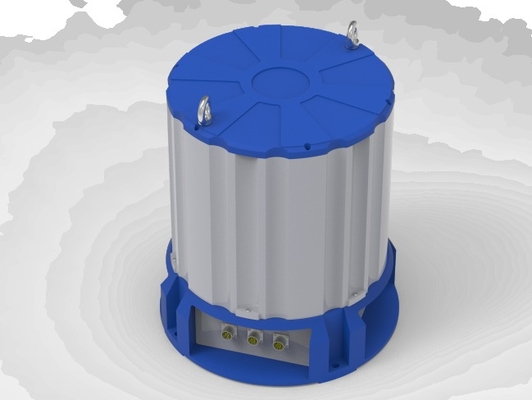

Model DINS-200 High Precision Single-Axis Rotating Laser Gyroscope Inertial Navigation System
Introduction
DINS-200single-axis rotating laser gyroscope inertial navigation system is a high-performance inertial navigation and measurement equipment.DINS-200 adopts high-precision laser gyroscope and quartz flexible accelerometer, and the system performance is significantly improved through high-precision error calibration, temperature compensation technology and single-axis rotating online self-calibration and error self-compensation technology. Electromagnetic shielding design, thermal balance design, vibration mode design, sealing design and strict manufacturing technology are adopted in the system to ensure excellent environmental adaptability.
Features
♦ High-precision two-frequency mechanically dithered laser gyroscope.
♦ On-line self-calibration and error self-compensation of single-axis rotation.
♦ Anti-disturbance traveling self-alignment.
♦ The input interface is rich, which supports the reference information access satellite navigation system/odometer/Doppler log/electromagnetic log/altimeter/ultra-short baseline underwater acoustic positioning system.
♦ There are various working modes, and the pure inertia/damping/integrated navigation mode can be selected automatically or manually according to the external reference information.
♦ Excellent environmental adaptability.
♦ Military standard.
Application
High precision ship navigation
Navigation and positioning of underwater unmanned submersible
Positioning and orientation of artillery geodesic vehicle
Positioning and orientation of Missile Launch Vehicle
High-precision Attitude Measurement
Electrical characteristics
Power supply:28VDC(18～36VDC),<100W
Communication:configurable serial ports (921600), Ethernet port, 2 CAN bus interfaces, Ethernet interface, 1 PPS interface, odometer pulse interface, maximum output frequency 1000Hz.
Working environment
Operating/Storage Temperature:-40℃~+60℃／-55℃~+80℃
Vibration:1g Sine@S~50Hz Normal operation/no damage under shock:30g@6ms/50g@11 ms
Physical characteristics
Size:φ480mmx520mm (diameter×height)
Weight:≤62kg (without buffer base)
Measuring range
Angular velocity:±400deg/s
Acceleration:±15g
|
Heading(RMS) secLat
|
Pure inertia
|
≤60arcsec
|
|
|
Damping/combination
|
≤30arcsec
|
|
Roll Pitch(RMS)
|
Pure inertia
|
≤30arcsec
|
|
|
Damping/combination
|
≤15arcsec
|
|
Position(CEP)
|
Pure inertial
|
≤2nm/48h
|
|
|
Guided combination
|
≤2m
|
|
|
Doppler meter damping
|
≤1 nm/48h
|
|
|
Electromagnetic meter damping
|
≤1 .5nm/48h
|
|
|
Odometer combination
|
≤0.15%0D
|
|
Velocity(RMS)
|
Pure inertia
|
≤0.6m/s
|
|
|
Damping
|
≤0.2m/s
|
|
|
Combined
|
≤0.1 m/s
|
|
Start-up time
|
Marine marina
|
≤12h
|
|
|
Marine offshore
|
≤12h with GNSS
|
|
|
Land based static
|
≤7min
|
|
|
Land-based travelling
|
≤15min with OD
|
|
Heave(RMS)
|
|
2.5cm or 2.5%
|
