Model FG-900M Tactical-grade Fiber-optic Compass Positioning System High Reliability

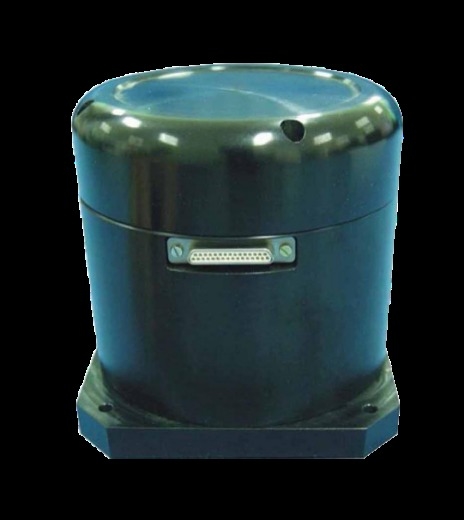

Large Image : Model FG-900M Tactical-grade Fiber-optic Compass Positioning System High Reliability

Product Details:

Place of Origin:	China
Brand Name:	NAVI OPTICS
Certification:	CCS
Model Number:	FG-900M
Document:	FG-900M tactical-grade fibe...em.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	one set
Packaging Details:	Carton box
Payment Terms:	T/T

Contact Now

Model FG-900M Tactical-grade Fiber-optic Compass Positioning System High Reliability

Description

Model FG-900M Tactical-grade Fiber-optic Compass Positioning System High Reliability

Introduction

The tactical FOG inertial measurement unit which has the functions of angular rate and acceleration input/output, error compensation, etc. is composed of inetial sensor assembly, electric circuits and chassis.It can provide angular rate and acceleration for flight control system and stabilized control system, which is suite for short distance guided missiles, UAVs, antenna stable reference system, guided rocket reconstruction, etc.

Characteristics

♦ Adopt three axis closed-loop FOG as the core component

♦ Low cost, small volume, light weight

♦ Low power consumption

♦ High reliability

Application

Short distance guided missiles, Guided rockets.UAVs, Antenna stable reference system etc.

Set-up Time		≤1min
Accuracy	Gyro bias stability	0.5° /h(RMS )
	Gyro bias repeatability	0.5° /h(RMS )
	Accelerometer bias stability	0.5° /h(RMS )
	Accelerometer bias repeatability	0.5° /h(RMS )
Dynamic Range	Angular rate	+500°/s
Dynamic Range	Acceleration	±30g
Operation Requirement	Temperature	-40~+60℃
	Shock	half-sine wave)	20g,11ms
	Vibration	amplitude of vibration(peak value)	6.0g
		frequency domain	10~2000 Hz
		sweep rate	≤1oct/min
MTBF	5000h
Power Supply/Consumption	±28VDC/10W
Interface	RS422
Dimension	Ф90×102mm
Weight	<1.2kg
