Model TDF62A Universal Marine Fiber Optic Inertial Navigation System Stable Performance

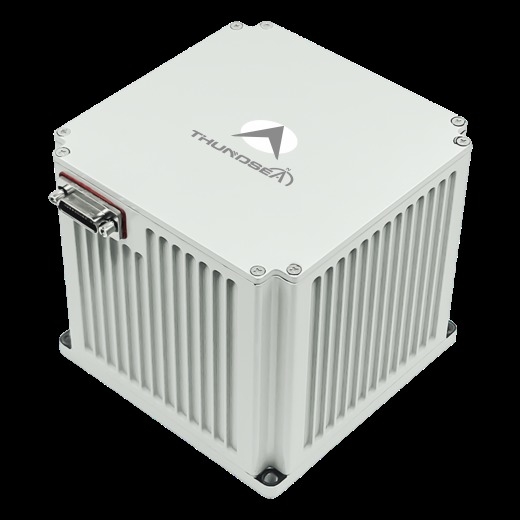

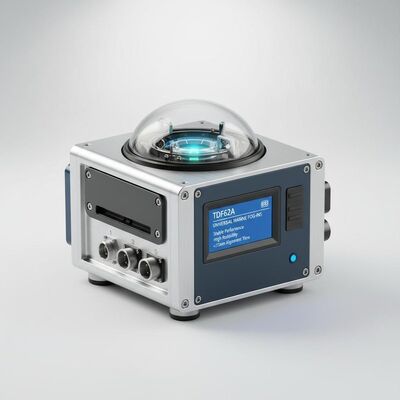

Large Image : Model TDF62A Universal Marine Fiber Optic Inertial Navigation System Stable Performance

Product Details:

Place of Origin:	China
Brand Name:	NAVI OPTICS
Certification:	CCS
Model Number:	TDF62A
Document:	TDF62A.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	one set
Packaging Details:	carton box
Payment Terms:	L/C,T/T

Contact Now

Model TDF62A Universal Marine Fiber Optic Inertial Navigation System Stable Performance

Description

Highlight:

marine fiber optic navigation system

universal inertial navigation system

stable performance navigation system

Model TDF62A Universal Marine Fiber Optic Inertial Navigation System Stable Performance

Introduction

This universal marine laser inertial navigation system (INS) features laser gyros and quartz flexure accelerometers as its core sensing components. Adopting a strapdown inertial navigation system architecture, it is equipped with advanced navigation software that operates at high speed internally to deliver real-time navigation data.

The product lineup offers multiple operational modes, such as standalone inertial navigation, inertial/satellite-integrated navigation, and inertial/velocity-aided integrated navigation. It supplies users with comprehensive navigation parameters for their platforms, effectively catering to the requirements of diverse marine platforms.

Application

Suitable for small- and medium-sized unmanned surface vessels (USVs), unmanned underwater vehicles (UUVs), underwater guided weapons, etc., especially platforms operating in complex environments with high speeds, wide temperature variations, and strong vibrations.

Characteristics

♦ Capable of alignment and initialization while moored or during constant-speed straight-line navigation.

♦ Stable performance and high reliability.

♦ Features system fault detection and alarm functions.

♦ Equipped with digital output interfaces, including Ethernet and RS422 serial ports.

Type	TDF62A
Accelerometer	Months Bias Repeatability	≤50μg
Accelerometer	Months Scale Factor Accuracy	≤50ppm
Gyro	Bias Repeatability	0.04°/hr~0.02°/hr
	Scale Factor Accuracy	≤50ppm
	Random walk	≤0.007°/√hr,1σ
Features	Angular Rate	≥±400°/sec
	Angular Acceleration	100000°/sec2
	Acceleration	＞25g
	Angular Attitude	Any Orientation
	Speed accuracy	≤5.0kn
	Startup time	≤10 sec
	Input/output	3 RS422 full-duplex serial ports, 1 100M Ethernet port
Alignment Time	Time	≤15min
Position Accuracy	Pure inertia	≤6nm/1h
Position Accuracy	Inertia/DVL Combination	≤0.8%D
AHRS Applications Performance	Heading Accuracy	≤0.3°sec(L)
AHRS Applications Performance	Pitch & Roll Accuracy	≤0.04°
Characteristics	Power consumption	＜12W
	Dimensions	120×110×80
	Weight	＜1.35kg
	Temperature	-40℃~60℃
	Shock	15g,Half-sine wave 11ms
	Input Voltage	DC24V(±25%)
	cooling	Conduction to mounting plate
	Vibration	20~2000Hz,6.06g
	MTBF	＞20000 hours
