Stable Performance High Reliability TDF121A Universal Marine Fiber Optic Inertial Navigation System
Key Attributes
Brand Name:
NAVI OPTICS
Model Number:
TDF121A
Place of Origin:
China
Certification:
CCS
Minimum Order Quantity:
one set
Payment Terms:
L/C,T/T
Standard Packaging:
carton box
Product Summary
TDF121A marine fiber optic INS delivers high reliability with 0.003°/hr gyro bias, 25g acceleration tolerance, and 20,000+ hours MTBF. Features Ethernet/RS422 interfaces, supports inertial/GNSS/DVL integration for USVs/UUVs in extreme environments.
Product Custom Attributes
Highlight
marine fiber optic inertial navigation system
,universal inertial navigation system with warranty
,high reliability inertial navigation system
Product Description

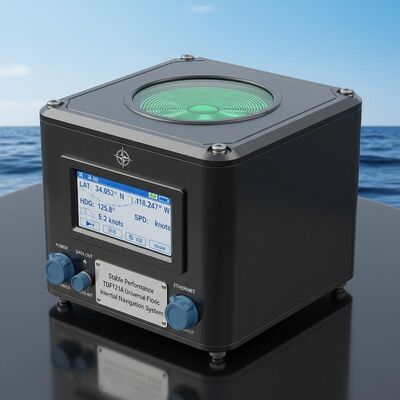

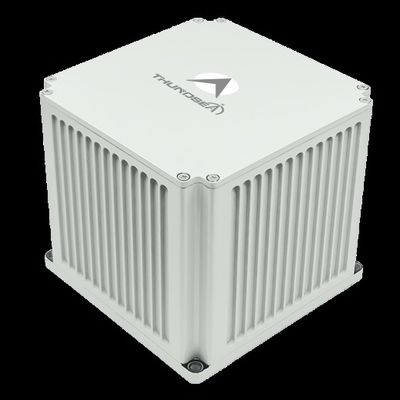

TDF121A Universal Marine Fiber Optic Inertial Navigation System
High reliability marine inertial navigation system with stable performance for demanding maritime applications.
Product Overview
This universal marine laser inertial navigation system (INS) incorporates laser gyros and quartz flexure accelerometers as core sensing devices. Utilizing a strapdown inertial navigation system framework with high-speed internal advanced navigation software, it delivers real-time navigation data. The system supports multiple operational modes including purely inertial navigation, inertial/satellite-integrated navigation, and inertial/velocity-aided integrated navigation.
Applications
Ideal for small- and medium-sized unmanned surface vessels (USVs), unmanned underwater vehicles (UUVs), underwater guided weapons, and platforms operating in complex environments with high speeds, wide temperature variations, and strong vibrations.
Key Features
- Capable of alignment and initialization while moored or during constant-speed straight-line navigation
- Stable performance and high reliability
- System fault detection and alarm functions
- Digital output interfaces including Ethernet and RS422 serial ports
Technical Specifications
| Parameter | Specification |
|---|---|
| Type | TDF121A |
| Accelerometer Bias Repeatability | ≤10μg |
| Accelerometer Scale Factor Accuracy | ≤10ppm |
| Gyro Bias Repeatability | 0.003°/hr~0.001°/hr |
| Gyro Scale Factor Accuracy | ≤20ppm |
| Random Walk | ≤0.0006°/√hr,1σ |
| Angular Rate | ≥±400°/sec |
| Angular Acceleration | 100000°/sec² |
| Acceleration | ＞25g |
| Angular Attitude | Any Orientation |
| Speed Accuracy | ≤1.20kn |
| Startup Time | ≤10 sec |
| Input/Output | 3 RS422 full-duplex serial ports, 1 100M Ethernet port |
| Alignment Time | ≤30min |
| Position Accuracy (Pure Inertia) | ≤1nm/4h |
| Position Accuracy (Inertia/DVL Combination) | ≤0.2%D |
| Heading Accuracy (AHRS) | ≤0.03°sec(L) |
| Pitch & Roll Accuracy | ≤0.02° |
| Power Consumption | ＜18W |
| Dimensions | 250*220*160 mm |
| Weight | ＜9kg |
| Operating Temperature | -40℃~60℃ |
| Shock Resistance | 15g, Half-sine wave 11ms |
| Input Voltage | DC24V(±25%) |
| Cooling Method | Conduction to mounting plate |
| Vibration Resistance | 20~2000Hz, 6.06g |
| MTBF | ＞20000 hours |
