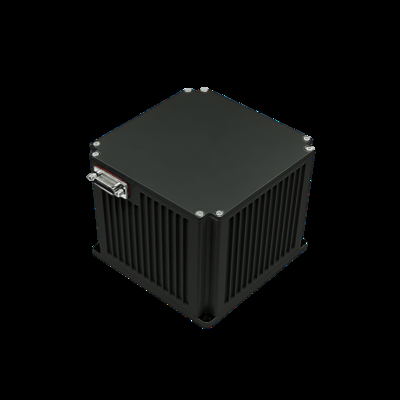

Small Size High Accuracy TDF51IMU0 Fiber Optic Inertial Unit Dynamic Measurement Functions

Large Image : Small Size High Accuracy TDF51IMU0 Fiber Optic Inertial Unit Dynamic Measurement Functions

Product Details:

Place of Origin:	China
Brand Name:	NAVI OPTICS
Certification:	CCS
Model Number:	TDF51IMU0
Document:	TDF51IMU0 Fiber Optic Inert...it.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	one set
Packaging Details:	carton box
Payment Terms:	L/C,T/T

Contact Now

Small Size High Accuracy TDF51IMU0 Fiber Optic Inertial Unit Dynamic Measurement Functions

Description

Zero Bias Stability (100s):	0.05°/h	Zero Bias Stability (10s):	0.1°/h
Variable Temperature Zero Bias Stability:	0.1°/h	Full Temperature Scale Factor:	≤200ppm
Random Walk Coefficient:	0.008°/√h	Input Range:	400°/s
Highlight:	small fiber optic inertial unit , high accuracy IMU dynamic measurement , TDF51IMU0 inertial measurement unit

Small Size High Accuracy TDF51IMU0 Fiber Optic Inertial Unit Dynamic Measurement Functions

♦ Overview

Fiber optic inertial units have the advantages of small size, light weight, low power consumption, and high accuracy. They can be used to design pure strapdown, single axis, and dual axis modulation inertial units, meeting the needs of new unmanned platforms, water/torpedo weapons, as well as land and airborne weapon platforms for small size and high-precision inertial unit equipment. They have dynamic measurement functions for carrier angular and linear motion information.

♦ Performance

Project	Content	Index	Notes
Performance indicators of gyroscope
Zero bias indicator	Zero bias stability (100s)	0.05°/h
	Zero bias stability (10s)	0.1°/h
	Variable temperature zero bias stability	0.1°/h
Scale Factor	Full temperature scale factor	≤200ppm
Other indicators	Random walk coefficient	0.008°/√h
Other indicators	Input range	400°/s
Performance indicators of accelerometer
Deviation index	Deviation monthly comprehensive error	50μg
Zero bias indicator	Zero bias temperature sensitivity	50μg/℃
Scale Factor	Scale factor monthly comprehensive error	50ppm
Scale Factor	Scale factor temperature sensitivity	50ppm/℃
Range indicator	Input range	±20g
Whole machine characteristics
Environmental performance indicators	Operation temperature	-40℃～60℃
Environmental performance indicators	Storage temperature	-45℃～70℃
General requirements	Power supply	18～36V(DC)
General requirements	Stable power consumption	≤12W	Startup power consumption ≤ 25W

♦ Electrical interfaces

Pin	Connectivity	Signal name	Signal characteristics
1,14	External power supply	PCS power supply positive	24V
2,15		PCS power supply ground	Power Ground
10	200Hz signal output	IMU_TX1+	IMU data output positive
9		IMU_TX1-	IMU data output negative
7	Synchronization signal	IMU_SYN+	IMU synchronization signal positive
6		IMU_SYN-	IMU synchronization signal negative

♦ Structural appearance and dimensions

Small Size High Accuracy TDF51IMU0 Fiber Optic Inertial Unit Dynamic Measurement Functions 0
