Small Size TDF42IMU0 Fiber Optic Inertial Unit Low Power Consumption

Name: Small Size TDF42IMU0 Fiber Optic Inertial Unit Low Power Consumption
Brand: QINGDAO THUNDSEA MARINE TECHNOLOGY CO.,LTD
SKU: TDF42IMU0
Price: 10,250.00 USD
Availability: InStock

All Products

Inertial Navigation System
(30)

Laser Inertial Navigation System
(1)

Fiber Optic Gyrocompass
(3)

Fiber Optic Gyroscope
(17)

Marine ARPA Radar
(13)

Fiber Optic Winding Machine
(0)

Marine SSB Radio
(3)

Single Beam Echo Sounder
(4)

Multi Beam Echo Sounder
(3)

Side Scan Sonnar
(4)

Underwater Positioning System
(4)

Gyrcompass Testing Turntable
(5)

Reconditioned Gyrosphere
(2)

Global Maritime Distress And Safety System
(25)

Electronic Chart Display And Information System
(3)

Fluid Type Gyrocompass
(5)

Speed Log
(4)

Thermal Imaging Camera System
(22)

Inertial Measurement Unit
(0)

Customer Reviews

Your inertial measurement unit are excellent, my customer like it very much .Thanks for your help to supply the good quality products to us .

—— michael klaric

Dear friends, your service is very timely and thoughtful, wish we keep cooperation in future.

—— Jezzhani

I'm Online Chat Now

Small Size TDF42IMU0 Fiber Optic Inertial Unit Low Power Consumption

Large Image : Small Size TDF42IMU0 Fiber Optic Inertial Unit Low Power Consumption

Product Details:

Place of Origin:	China
Brand Name:	NAVI OPTICS
Certification:	CCS
Model Number:	TDF42IMU0
Document:	TDF42IMU0 Fiber Optic Inert...it.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	one set
Packaging Details:	carton box
Payment Terms:	T/T,L/C

Contact Now

Small Size TDF42IMU0 Fiber Optic Inertial Unit Low Power Consumption

Description

Zero Bias Stability (100s):	0.05°/h	Zero Bias Stability (10s):	0.1°/h
Variable Temperature Zero Bias Stability:	0.1°/h	Full Temperature Scale Factor:	≤200ppm
Random Walk Coefficient:	0.01°/h	Input Range:	400°/s

Small Size TDF42IMU0 Fiber Optic Inertial Unit Low Power Consumption

♦ Overview

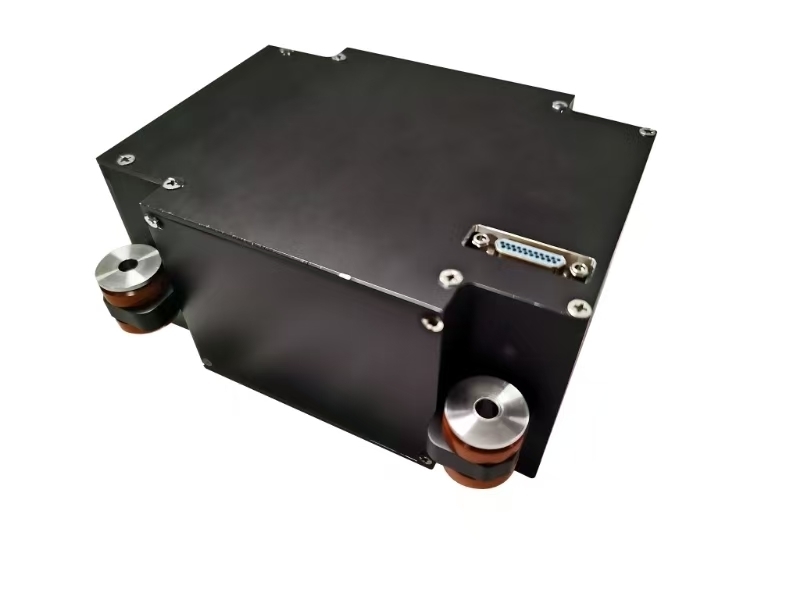

This type of fiber optic inertial unit has the advantages of small size, light weight, low power consumption, and high accuracy, which can meet the application scenarios of large impact and large vibration. It can be used for small size and high-precision inertial unit equipment such as water/torpedo weapons, land and airborne weapons, and missile platforms, and has dynamic measurement functions for carrier angular and linear motion information.

♦ Performance

Project	Content	Index	Notes
Performance indicators of gyroscope
Zero bias indicator	Zero bias stability (100s)	0.05°/h
	Zero bias stability (10s)	0.1°/h
	Variable temperature zero bias stability	0.1°/h
Scale Factor	Full temperature scale factor	≤200ppm
Other indicators	Random walk coefficient	0.01°/h
	Input range	400°/s
Performance indicators of accelerometer
Deviation index	Deviation monthly comprehensive error	50μg
Zero bias indicator	Zero bias temperature sensitivity	50μg/℃
Scale Factor	Scale factor monthly comprehensive error	50ppm
	Scale factor temperature sensitivity	50ppm/℃
Range indicator	Input range	±20g
Whole machine characteristics
Environmental performance indicators	Operation temperature	-40℃～60℃
	Storage temperature	-45℃～70℃
General requirements	Power supply	18～36V(DC)
	Stable power consumption	≤12W	Startup power consumption ≤ 25W

♦ Electrical interfaces

The external electrical interfaces of the inertial group equipment include power interface, RS422 communication interface, and 100Mbps Ethernet interface. The socket model for the external electrical interface is J30JM-25ZKP43, and the matching plug model is J30J-25TJL. The external wiring definition of the inertial group equipment is shown in Table 2.

Pin	Connectivity	Signal name	Signal characteristics
1,14	External power supply	PCS power supply positive	24V
2,15		PCS power supply ground	Power Ground
10	200Hz signal output	IMU_TX1+	IMU data output positive
9		IMU_TX1-	IMU data output negative
7	Synchronization signal	IMU_SYN+	IMU synchronization signal positive
6		IMU_SYN-	IMU synchronization signal negative

♦ Structural appearance and dimensions
