Small Size TDFG99IMU Fiber Optic Inertial Unit High Accuracy Light Weight

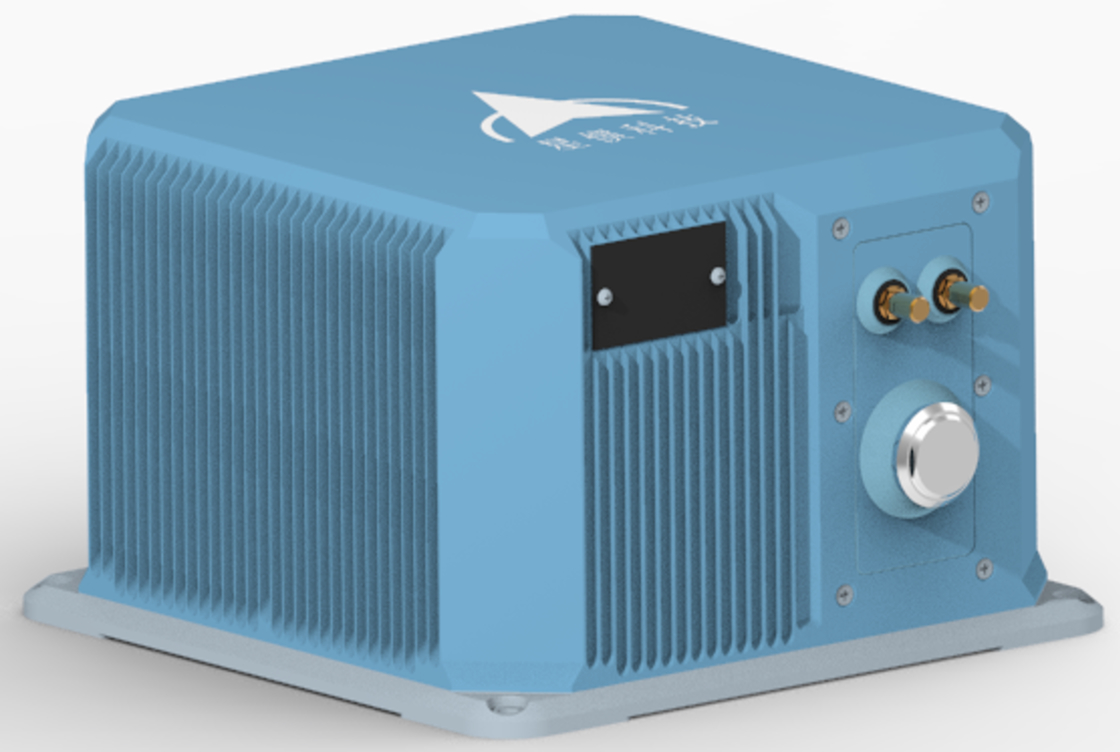

Large Image : Small Size TDFG99IMU Fiber Optic Inertial Unit High Accuracy Light Weight

Product Details:

Place of Origin:	China
Brand Name:	NAVI OPTICS
Certification:	CCS
Model Number:	TDFG99IMU
Document:	TDF99IMU0 Fiber Optic Inert...it.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	one set
Packaging Details:	carton box
Payment Terms:	L/C,T/T

Contact Now

Small Size TDFG99IMU Fiber Optic Inertial Unit High Accuracy Light Weight

Description

Zero Bias Stability (100s):	0.005°/h	Zero Bias Stability (10s):	0.01°/h
Variable Temperature Zero Bias Stability:	0.02°/h	Full Temperature Scale Factor:	≤150ppm
Random Walk Coefficient:	0.001°/h	Input Range:	400°/s
Highlight:	small fiber optic inertial unit , high accuracy IMU sensor , lightweight inertial measurement unit

Small Size TDFG99IMU Fiber Optic Inertial Unit High Accuracy Light Weight

♦ Overview

This fiber optic inertial unit offers a compact, lightweight design with low power consumption and high precision. It features eight-point vibration damping, enabling reliable performance in high-impact and high-vibration environments. Suitable for pure strapdown applications, it meets the requirements of next-generation unmanned platforms, underwater/torpedo systems, as well as land, airborne, and missile weapon platforms that demand miniaturized yet high-precision inertial technology. Additionally, it provides dynamic measurement capabilities for both angular and linear motion of the carrier.

♦ Performance

Project	Contents	Index	Notes
Performance indicators of gyroscope
Zero bias indicator	Zero bias stability (100s)	0.005°/h
	Zero bias stability (10s)	0.01°/h
	Variable temperature zero bias stability	0.02°/h
Scale Factor	Full temperature scale factor	≤150ppm
Other indicators	random walk coefficient	0.001°/h
Other indicators	input range	400°/s
Performance indicators of accelerometer
Deviation index	Deviation monthly comprehensive error	20μg
Zero bias indicator	Zero bias temperature sensitivity	20μg/℃
Scale Factor	Scale factor monthly comprehensive error	20ppm
Scale Factor	Scale factor temperature sensitivity	20ppm/℃
Range indicator	Input range	±20g
Whole machine characteristics
Environmental performance indicators	Operation temperature	-40℃～60℃
Environmental performance indicators	Storage temperature	-45℃～70℃
General requirements	Power supply	18～36V(DC)
General requirements	Stable power consumption	≤15W	Startup power consumption ≤ 25W

♦ Electrical Interfaces

Pin	Connectivity	Signal name	Signal characteristics
39,40	External power supply	PCS power supply positive	24V
41,42		PCS power supply ground	Power Ground
5	200Hz signal output	IMU_TX1+	IMU data output positive
6		IMU_TX1-	IMU data output negative
9	Synchronization signal	IMU_SYN+	IMU synchronization signal positive
10		IMU_SYN-	IMU synchronization signal negative

♦ Structural appearance and dimensions
