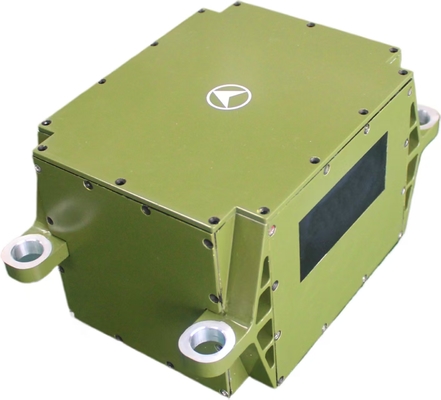

Small Size High-precision TDL45IMU Laser Inertial Unit Large Impact Large Vibration

Large Image : Small Size High-precision TDL45IMU Laser Inertial Unit Large Impact Large Vibration

Product Details:

Place of Origin:	China
Brand Name:	NAVI OPTICS
Certification:	CCS
Model Number:	TDL45IMU
Document:	TDL45IMU0 Laser Inertial Un...it.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	one set
Packaging Details:	carton box
Payment Terms:	L/C,T/T

Contact Now

Small Size High-precision TDL45IMU Laser Inertial Unit Large Impact Large Vibration

Description

Zero Bias Stability (100s):	0.01°/h	Zero Bias Repeatability:	0.005°/h
Full Temperature Scale Factor:	≤5ppm	Random Walk Coefficient:	0.002°/h
Input Range:	400°/s
Highlight:	small high-precision TDL45IMU inertial unit , laser inertial unit large impact resistant , IMU measurement unit large vibration proof

Small Size High-precision TDL45IMU Laser Inertial Unit Large Impact Large Vibration

♦ Overview

This type of laser inertial unit has the advantages of small size, light weight, low power consumption, and high accuracy. It contains eight points of vibration reduction and can meet the application scenarios of large impact and large vibration. It can be used to design pure strap down and meet the needs of new unmanned platforms, water/torpedo weapons, as well as land, airborne, and missile weapon platforms for small size and high-precision inertial unit equipment. It has the dynamic measurement function of carrier angular motion and linear motion information.

♦ Performance

Project	Contents	Index	Notes
Performance indicators of gyroscope
Zero bias indicator	Zero bias stability (100s)	0.01°/h
Zero bias indicator	Zero bias repeatability	0.005°/h
Scale Factor	Full temperature scale factor	≤5ppm
Other indicators	Random walk coefficient	0.002°/h
Other indicators	Input range	400°/s
Performance indicators of accelerometer
Deviation index	Deviation monthly comprehensive error	20μg
Zero bias indicator	Zero bias temperature sensitivity	20μg/℃
Scale Factor	Scale factor monthly comprehensive error	20ppm
Scale Factor	Scale factor temperature sensitivity	20ppm/℃
Range indicator	Input range	±20g
Whole machine characteristics
Environmental performance indicators	Operation temperature	-40℃～60℃
Environmental performance indicators	Storage temperature	-45℃～70℃
General requirements	Power supply	18～36V(DC)
General requirements	Stable power consumption	≤20W	Startup power consumption ≤ 25W

♦ Electrical Interfaces

Pin	Connectivity	Signal name	Signal characteristics
1,12	External power supply	PCS power supply positive	24V
2,13		PCS power supply ground	Power Ground
3	200Hz signal output	IMU_TX1+	IMU data output positive
14		IMU_TX1-	IMU data output negative
6	Synchronization signal	IMU_SYN+	IMU synchronization signal positive
17		IMU_SYN-	IMU synchronization signal negative

♦ Structural appearance and dimensions

Small Size High-precision TDL45IMU Laser Inertial Unit Large Impact Large Vibration 0
