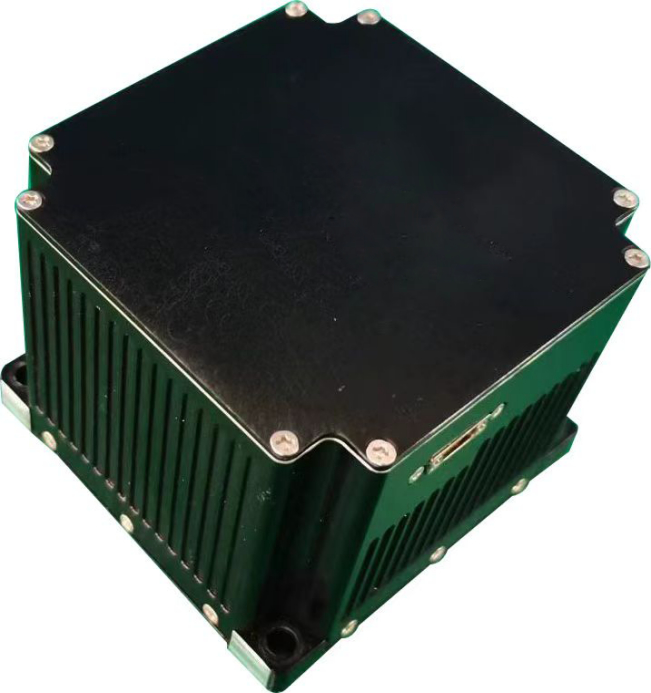

High Accuracy TDF37IMU0 Fiber Optic Inertial Unit Dynamic Measurement Functions

Large Image : High Accuracy TDF37IMU0 Fiber Optic Inertial Unit Dynamic Measurement Functions

Product Details:

Place of Origin:	China
Brand Name:	NAVI OPTICS
Certification:	CCS
Model Number:	TDF37IMU0
Document:	TDF37IMU0 Fiber Optic Inert...it.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	one set
Packaging Details:	carton box
Payment Terms:	L/C,T/T

Contact Now

High Accuracy TDF37IMU0 Fiber Optic Inertial Unit Dynamic Measurement Functions

Description

Zero Bias Stability (10s):	0.2°/h	Variable Temperature Zero Bias Stability (100s):	0.5°/h
0.5°/h Scale Factor Nonlinearity:	≤20ppm	Random Walk Coefficient:	0.02°/√h
Input Range:	400°/s
Highlight:	fiber optic inertial measurement unit , high accuracy IMU dynamic measurement , TDF37IMU0 inertial unit functions

High Accuracy TDF37IMU0 Fiber Optic Inertial Unit Dynamic Measurement Functions

♦ Overview

Fiber optic inertial units have the advantages of small size, light weight, low power consumption, and high accuracy. They can be used to design pure strapdown systems, meet the needs of new unmanned platforms, water/torpedo weapons, as well as land, airborne, and missile weapon platforms for small size and high-precision inertial unit equipment, and have dynamic measurement functions for carrier angular and linear motion information.

♦ Performance

Project	Content	Index	Remark
Performance indicators of gyroscope
Zero bias indicator	Zero bias stability (10s)	0.2°/h
Zero bias indicator	Variable temperature zero bias stability (100s)	0.5°/h
Scale Factor	Scale factor nonlinearity	≤20ppm
Other indicators	random walk coefficient	0.02°/√h
Other indicators	input range	400°/s
Performance indicators of accelerometer
Deviation index	Zero bias repeatability	0.3mg
Zero bias indicator	Zero bias temperature sensitivity	50μg/℃
Scale Factor	Scale factor repeatability	300ppm
Scale Factor	Scale factor temperature sensitivity	20ppm/℃
Range indicator	input range	±20g
Whole machine characteristics
Environmental performance indicators	operation temperature	-40℃～65℃
Environmental performance indicators	storage temperature	-40℃～60℃
General requirements	power supply	18～36V(DC)
General requirements	Stable power consumption	≤8W	Startup power consumption ≤ 15W

♦ Electrical interfaces

Pin	Connectivity	Signal Name	Signal Characteristics
1,2	External power supply	PCS power supply	24V
3,4		PCS Power Supply	Power Ground
5	200Hz signal output	IMU_TX1+	IMU data output positive
6		IMU_TX1-	IMU data output negative
9	Synchronization signal	IMU_SYN+	IMU synchronization signal positive
10		IMU_SYN-	IMU synchronization signal negative

♦ Structural appearance and dimensions
