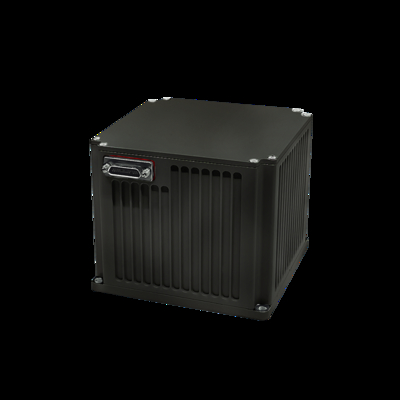

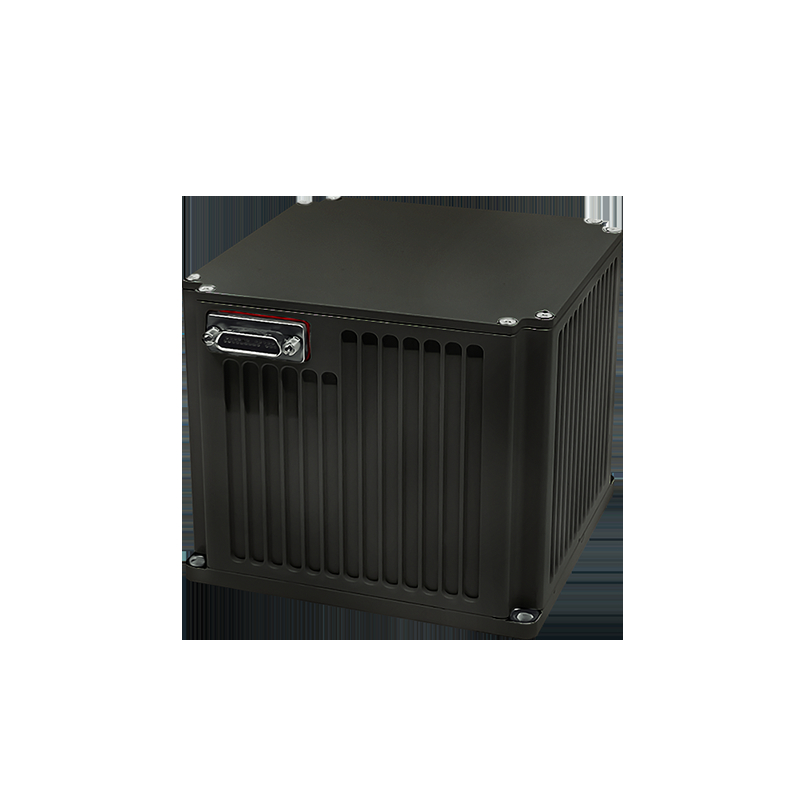

Light Weight High Accuracy TDF71IMU0 Fiber Optic Inertial Unit Dynamic Measurement Functions

Light Weight High Accuracy TDF71IMU0 Fiber Optic Inertial Unit Dynamic Measurement Functions
Light Weight High Accuracy TDF71IMU0 Fiber Optic Inertial Unit Dynamic Measurement Functions

Large Image :  Light Weight High Accuracy TDF71IMU0 Fiber Optic Inertial Unit Dynamic Measurement Functions

Product Details:
Place of Origin: China
Brand Name: NAVI OPTICS
Certification: CCS
Model Number: TDF71IMU0
Document: TDF71IMU0 Fiber Optic Inert...it.pdf
Payment & Shipping Terms:
Minimum Order Quantity: NAVI OPTICS
Packaging Details: carton box
Payment Terms: L/C,T/T
Contact Now

Light Weight High Accuracy TDF71IMU0 Fiber Optic Inertial Unit Dynamic Measurement Functions

Description
Zero Bias Stability (100s): 0.01°/h Zero Bias Stability (10s): 0.03°/h
Variable Temperature Zero Bias Stability: 0.05°/h Full Temperature Scale Factor: ≤150ppm
Random Walk CoefficientRandom Walk Coefficient: 0.002°/√h Input Range: 400°/s
Highlight:

lightweight fiber optic inertial unit

,

high accuracy IMU dynamic measurement

,

TDF71IMU0 inertial measurement unit

Light Weight High Accuracy TDF71IMU0 Fiber Optic Inertial Unit Dynamic Measurement Functions


♦ Overview

Fiber optic inertial units have the advantages of small size, light weight, low power consumption, and high accuracy. They can be used to design pure strapdown systems, meet the needs of new unmanned platforms, water/torpedo weapons, as well as land, airborne, and missile weapon platforms for small size and high-precision inertial unit equipment, and have dynamic measurement functions for carrier angular and linear motion information.



♦ Performance

Project Content Index Notes
Performance indicators of gyroscope
Zero bias indicator Zero bias stability (100s) 0.01°/h
Zero bias stability (10s) 0.03°/h
Variable temperature zero bias stability 0.05°/h
Scale Factor Full temperature scale factor ≤150ppm
Other indicators Random walk coefficient 0.002°/√h
Input range 400°/s
Performance indicators of accelerometer
Deviation index Deviation monthly comprehensive error 20μg
Zero bias indicator Zero bias temperature sensitivity 20μg/℃
Scale Factor Scale factor monthly comprehensive error 20ppm
Scale factor temperature sensitivity 20ppm/℃
Range indicator Input range ±20g
Whole machine characteristics
Environmental performance indicators Operation temperature -40℃～60℃
Storage temperature -45℃～70℃
General requirements Power supply 18～36V(DC)
Stable power consumption ≤15W Startup power consumption ≤ 25W



♦ Electrical interfaces

Pin Connectivity Signal name Signal characteristics
1,2 External power supply PCS power supply positive 24V
3,4
PCS power supply ground Power Ground
5 200Hz signal output IMU_TX1+ IMU data output positive
6
IMU_TX1- IMU data output negative
9 Synchronization signal IMU_SYN+ IMU synchronization signal positive
10
IMU_SYN- IMU synchronization signal negative



♦ Structural appearance and dimensions
