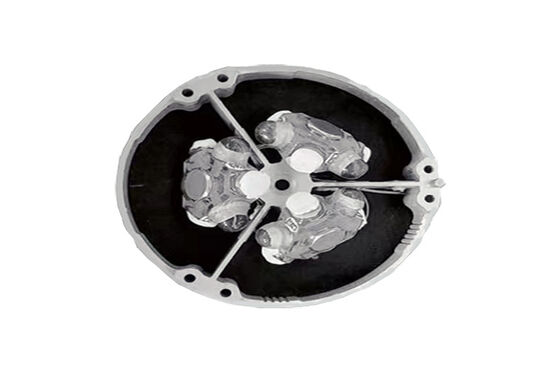

TDLG06 High Precision Laser Gyroscope
Key Attributes
Brand Name:
Navioptics
Model Number:
TDLG06
Place of Origin:
China
Minimum Order Quantity:
1
Supply Ability:
30 set per month
Delivery Time:
2 Months
Standard Packaging:
carton box
Product Summary
Introduction The TDLG06 laser gyroscope is a rugged inertial device developed for small and lightweight requirements. It is fully benchmarked against the GG1308 laser gyro and adopts the same design and process route. Feature 1,Good stability of scale factor 2,Strong resistance to shock overload 3...
Product Custom Attributes
Product Description
Introduction
The TDLG06 laser gyroscope is a rugged inertial device developed for small and lightweight requirements. It is fully benchmarked against the GG1308 laser gyro and adopts the same design and process route.
Feature
1,Good stability of scale factor
2,Strong resistance to shock overload
3,Insensitive to temperature and electromagnetism
4,Small volume, light weight, low cost
Main technical indicators
|
TDLG06 Low Precision Laser Gyroscope |
|
|
Maximum external dimensions (φ×H) |
ф39 mmX10mm |
|
Weight |
(14±2)g |
|
Zero Bias stability |
0.5~5°/h Typical accuracy:2°/h |
|
Random Walk |
0.1~0.5°/√h |
|
Scale factor stability |
<150ppm |
|
Measurement range |
±8000°/s |
|
Operating temperature |
(-50-80)℃ |
|
Storage Life |
>4 years |
|
Operating life |
>500h |
|
Vibration |
<20g |
|
Shock Response Spectrum |
>20000g |
|
Sensitive axial maximum overload |
<200g |
