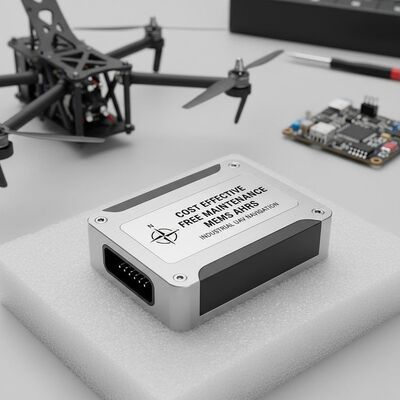

Cost Effective Free Maintenance MEMS AHRS with Small and Compact Design for Industrial UAV Navigation
Key Attributes
Brand Name:
THUNDSEA
Model Number:
INEM-100 MEMS type AHRS
Place of Origin:
Qingdao
Certification:
CCS
Minimum Order Quantity:
one set
Supply Ability:
30 set per month
Delivery Time:
15 Days
Payment Terms:
L/C,T/T
Standard Packaging:
carton box
Product Summary
INEM-100: Cost-effective MEMS AHRS with 0.05° attitude accuracy, 3° heading accuracy, and robust performance from -40℃ to 70℃. Compact, plug-and-play design ideal for UAV navigation, antenna stabilization, and industrial vehicle control.
Product Custom Attributes
Highlight
3 min attitude and heading reference system
,MEMS imu inertial measurement unit
,3 min inertial navigation unit
Start-up Time:
3 Min
Attitude Accuracy:
0.05 Deg,1σ
Heading Accuracy:
3deg,1σ
Angular Rate:
±400deg/s
Acceleration:
±20g
Work Temperature:
﹣40℃~70℃
Storage Temperature:
﹣55℃~85℃
Vibration:
0.04g²/hz@20~2000hz
Shock With Normal Work/ Without Damage:
30g@6ms/100g@0.5ms
Work Voltage:
12V DC
Consumption:
≤2.5W
Communication:
RS422/RS232
Size:
48×58×37mm
Weight:
≤110g
Product Description
INEM-100 MEMS Type AHRS
Free Maintenance Cost Effective Attitude and Heading Reference System
Product Overview
A cost-effective MEMS type Attitude and Heading Reference System designed for reliable performance with zero maintenance requirements, featuring compact design and excellent environmental suitability.
Key Features
- Cost-effective MEMS sensors
- Full scale temperature compensation
- Good anti-vibration and anti-shock performance
- Excellent environmental suitability
- Small and compact design, plug and play
Applications
- Navigation and control for land vehicle
- Antenna stabilization and control
- Navigation and control for industrial UAV
- Attitude and heading reference
Technical Specifications
| Performance | |
|---|---|
| Start-up time | 3 min |
| Attitude Accuracy | 0.05 deg, 1σ |
| Heading Accuracy | 3 deg, 1σ |
| Input Ranges | |
| Angular Rate | ±400 deg/s |
| Acceleration | ±20g |
| Work Environment | |
| Work temperature | ﹣40℃ ~ 70℃ |
| Storage temperature | ﹣55℃ ~ 85℃ |
| Vibration | 0.04g²/hz @ 20~2000hz |
| Shock with normal work / without damage | 30g @ 6ms / 100g @ 0.5ms |
| Electrical Characteristics | |
| Work Voltage | 12V DC |
| Consumption | ≤2.5W |
| Communication | RS422/RS232 |
| Physical Characteristics | |
| Size | 48*58*37mm |
| Weight | ≤110g |
