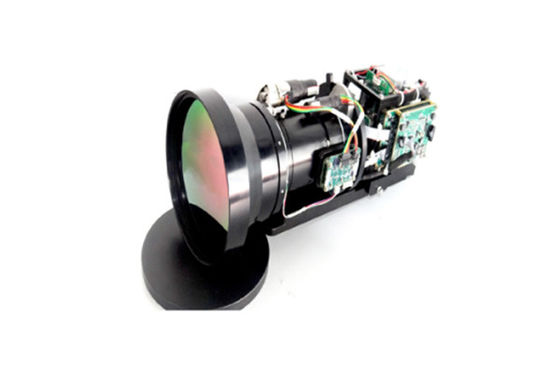

23-450mm Thermal Imaging Camera System F4 Continuous Zoom MWIR LEO Detector

23-450mm Thermal Imaging Camera System F4 Continuous Zoom MWIR LEO Detector
23-450mm Thermal Imaging Camera System F4 Continuous Zoom MWIR LEO Detector

Large Image :  23-450mm Thermal Imaging Camera System F4 Continuous Zoom MWIR LEO Detector

Product Details:
Place of Origin: China
Brand Name: thundsea
Certification: CCS
Model Number: FCTL450ZB
Payment & Shipping Terms:
Minimum Order Quantity: one set
Packaging Details: carton box
Delivery Time: 15 days
Payment Terms: L/C, T/T
Supply Ability: 30 set per month

23-450mm Thermal Imaging Camera System F4 Continuous Zoom MWIR LEO Detector

Description
Detector: MCT 640 ×512 Spectral Range: 3.7 ~4.8μm
Pixel Pitch: 15μm Cooling Method: Stirling Refrigerator
Focal Length: 23 ㎜~450 ㎜ Continuous Zoom Frame Frequency: 50Hz
NETD: ≤25mk@25℃ Operation TemperatureOperation Temperature: -30℃~55℃
High Light:

450mm Thermal Imaging Camera System

,

23mm Thermal Imaging Camera System

,

F4 Thermal Imaging Camera System

23-450mm F4 Continuous Zoom MWIR LEO Detector Thermal Imaging Camera System

23-450mm Thermal Imaging System is an advanced MWIR cooled thermal imager used for long-distance detection. The highly sensitive MWIR cooled core with 640x512 resolution can produce very clear image with very high resolution; the 23mm ~ 450mm continuous zoom infrared lens used in the product can effectively distinguish targets such as people, vehicles and ships in long distance.



23-450mm Thermal Imaging Camera System F4 Continuous Zoom MWIR LEO Detector 0



Figure1 Thermal imaging image



Technical Specification



1 Detector



Detector MCT 640 ×512

Spectral range 3.7 ~4.8μm

Pixel pitch 15μm

Cooling method Stirling Refrigerator



2 Lens

Focal length 23 ㎜~450 ㎜ continuous zoom



3 Performance

FOV range 1.22°(H) ×0.98°(V)to 23.5°(H) ×18.9°(V)

Cooling time ≤8 minutes in normal temperature

Video Output standard PAL format analog video signal

Frame Frequency 50Hz

NETD ≤25mk@25℃

Power source DC 24 ~32 V, with power reverse polarity protection

Power consumption ≤15W@25℃, steady state

                                 ≤30W@25℃, start-up peak

Operation Temperature -30℃~55℃

Storage Temperature -40℃~70℃



4 Command and Control

Control communication RS232/RS422

Correction manual correction/background correction

Polarity control white hot/black hot switch

Electronic Zoom ×2/×4 electronic zoom

Image enhancement Yes

Cross display Yes

Image turning Horizontal/vertical
