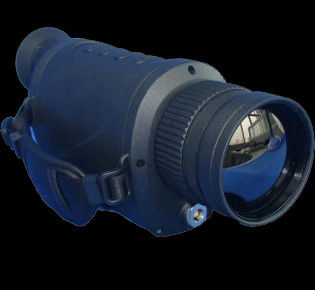

Rescue Search Night Observation Device Patrol And Surveillance

Night vision observation, rescue & search, patrol and surveillance

Applications
Night vision observation, rescue & search, patrol and surveillance

Functional characteristics
1.High mobility: small size, light weight, hand-held portability.
2.Multiple functions and controls: image display/record/download; image preview/delete; auto/manual NUC; auto/manual gain control; brightness control; positive/negative image display; electronic zooming
3.High environment adaptability and reliability

Technical data
l Detectors: 320×240 uncooled FPA
l Spectral range: 8～12μm
l Lens: 65mm/F0.8 (customized)
l NETD:≤40mK ＠25℃
l Detection distance: ≥1.2 km against individual persons;
≥ 2.4 km against vehicles;
≥ 5 km against medium sized ships
l Focusing mode: manual
l Video output: CCIR/LVDS
l Storage capacity: 1000 IR images (extendable)
l Operation temperature: -30℃～+60℃
l Vibration resistance: as per GJB150
l Packaging: IP54
l Weight: ≤1.5 kg (with battery)
l Dimension(mm): 230×112×95
l Power supply: built-in battery ( continuous operation
time >4h), or external 6～9VDC power source
l Electric interface: USB2.0 port for image download
l Mechanical interface: Standard tripod thread interface
