Land Force Navigation TDL45C Vehicle Mounted Optical Gyro Positioning Equipment with ≤0.003°/√hr Random Walk, ≥±400°/sec Angular Rate and ＞15000 hours MTBF
Key Attributes
Brand Name:
NAVI OPTICS
Model Number:
TDL45C
Place of Origin:
China
Certification:
CCS
Minimum Order Quantity:
one set
Supply Ability:
10 sets per month
Delivery Time:
5-8 work days
Standard Packaging:
Carton box
Product Summary
TDL45C vehicle-mounted optical gyro system delivers ≤5m positioning accuracy with 15,000+ hours MTBF. Features ±400°/sec angular rate, -40℃ to 60℃ operation, and multiple navigation modes for military and industrial vehicles.
Product Custom Attributes
Highlight
Vehicle mounted Optical Gyro Equipment
,Optical Gyro inertial navigation Equipment
Months Bias Repeatability:
≤10μg
Months Scale Factor Accuracy:
≤10ppm
Bias Repeatability:
≤0.01°/h
Scale Factor Accuracy:
≤5ppm
Random Walk:
≤0.003°/√hr
Angular Rate:
≥±400°/sec
Angular Acceleration:
100000°/sec2
MTBF:
＞15000 Hours
Product Description

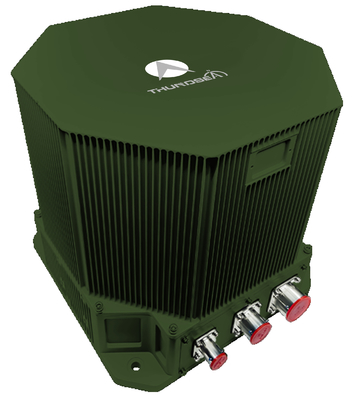

Land Force Navigation TDL45C Vehicle Mounted Optical Gyro Positioning And Orientation Equipment
The TDL45C vehicle-mounted optical gyro positioning and orientation equipment utilizes advanced laser or fiber optic gyros and quartz accelerometers as core sensors. Employing a strapdown inertial navigation system architecture with sophisticated navigation software, it delivers real-time navigation data across multiple operating modes including zero-velocity update (ZUPT), inertial/satellite-based integrated navigation, and inertial/odometer integrated navigation.
Application Fields
This optical gyro positioning system is compatible with diverse vehicle platforms including geodetic survey vehicles, armored combat platforms (tanks, self-propelled artillery, infantry fighting vehicles), unmanned ground vehicles (UGVs), high-speed rail systems, agricultural machinery, and other mechanized platforms requiring precision navigation. This versatile solution serves positioning needs across civilian, and industrial applications.
Performance Characteristics
- Autonomous navigation with zero-velocity update (ZUPT) capability
- Integrated navigation with odometer and satellite-based systems
- Alignment and initialization in both static and dynamic (in-motion) states
- Suitable for high-latitude (±65°), extremely cold, and high-altitude regions
- High reliability design for demanding environments
Technical Specifications
| Parameter Category | Specification | Value |
|---|---|---|
| Accelerometer | Months Bias Repeatability | ≤10μg |
| Months Scale Factor Accuracy | ≤10ppm | |
| Gyro | Bias Repeatability | ≤0.01°/h |
| Scale Factor Accuracy | ≤5ppm | |
| Random Walk | ≤0.003°/√hr | |
| Features | Angular Rate | ≥±400°/sec |
| Angular Acceleration | 100000°/sec² | |
| Acceleration | ＞25g | |
| Angular Attitude | Any Orientation | |
| Performance | Alignment Time | ≤15min |
| Input/Output | Interfaces | 3 RS422 full-duplex serial ports, 1 100M Ethernet port |
| Position Accuracy | North Finding/Orientation Accuracy | ≤5m |
| Inertial Navigation/Odometer Combination | ≤0.05%D | |
| North Finding/Orientation Accuracy | ≤0.3mil | |
| Bearing Keeping Accuracy/2h | ≤0.3mil | |
| Combined Navigation Position Accuracy | ≤0.2mil | |
| AHRS Applications Performance | Heading Accuracy | ≤0.2mil |
| Pitch & Roll Accuracy | ≤0.2mil | |
| Characteristics | Power Consumption | ＜40W |
| Weight | ＜8.2kg | |
| Temperature Range | -40℃~60℃ | |
| Shock Resistance | 15g, Half-sine wave 11ms | |
| Input Voltage | DC24V(±25%) | |
| Cooling Method | Conduction to mounting plate | |
| Vibration Resistance | 20~2000Hz, 6.06g | |
| MTBF | ＞15000 hours |
