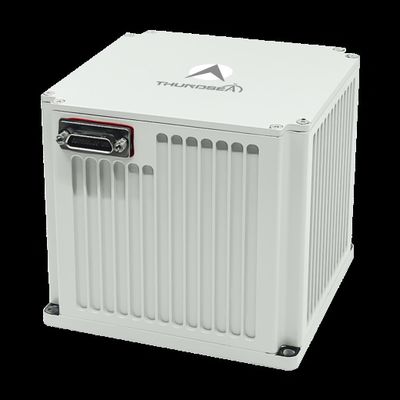

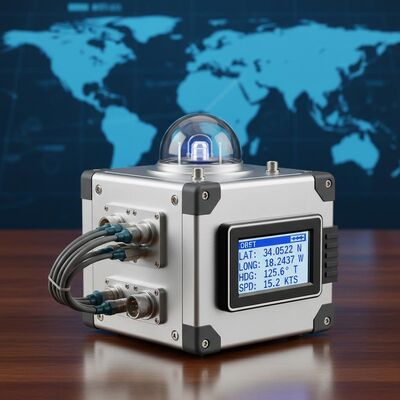

Stable Performance High Reliability TDF99A Universal Marine Fiber Optic Inertial Navigation System with Real-time Navigation Data
Key Attributes
Brand Name:
NAVI OPTICS
Model Number:
TDF99A
Place of Origin:
China
Certification:
CCS
Minimum Order Quantity:
one set
Payment Terms:
L/C,T/T
Standard Packaging:
carton box
Product Summary
TDF99A marine fiber optic INS delivers ≤1.2kn speed accuracy & 20,000+ hours MTBF. Features laser gyros, quartz accelerometers, and supports inertial/GNSS/DVL integration for USVs/UUVs in extreme environments.
Product Custom Attributes
Highlight
marine fiber optic navigation system
,universal inertial navigation system
,TDF99A inertial navigation system
Product Description
Stable Performance TDF99A Universal Marine Fiber Optic Inertial Navigation System
Advanced marine laser inertial navigation system featuring laser gyros and quartz flexure accelerometers in a strapdown architecture with high-speed navigation software for real-time data output.
Applications
Ideal for small- and medium-sized unmanned surface vessels (USVs), unmanned underwater vehicles (UUVs), underwater guided weapons, and platforms operating in complex environments with high speeds, wide temperature variations, and strong vibrations.
Key Features
- Capable of alignment and initialization while moored or during constant-speed straight-line navigation
- Stable performance and high reliability
- System fault detection and alarm functions
- Digital output interfaces including Ethernet and RS422 serial ports
Technical Specifications
| Type | TDF99A |
| Accelerometer | |
| Months Bias Repeatability | ≤10μg |
| Months Scale Factor Accuracy | ≤10ppm |
| Gyro | |
| Bias Repeatability | 0.005°/hr~0.003°/h |
| Scale Factor Accuracy | ≤20ppm |
| Random walk | ≤0.0008°/√hr,1σ |
| Performance Features | |
| Angular Rate | ≥±400°/sec |
| Angular Acceleration | 100000°/sec² |
| Acceleration | ＞25g |
| Angular Attitude | Any Orientation |
| Speed Accuracy | ≤1.2kn |
| Startup Time | ≤10 sec |
| Input/Output | 3 RS422 full-duplex serial ports, 1 100M Ethernet port |
| Alignment | |
| Alignment Time | ≤30min |
| Position Accuracy (Pure Inertia) | ≤1nm/2h |
| Position Accuracy (Inertia/DVL Combination) | ≤0.3%D |
| AHRS Applications Performance | |
| Heading Accuracy | ≤0.05°sec(L) |
| Pitch & Roll Accuracy | ≤0.02° |
| Physical Characteristics | |
| Power Consumption | ＜18W |
| Dimensions | 158*161*135 mm |
| Weight | ＜4kg |
| Operating Temperature | -40℃~60℃ |
| Shock Resistance | 15g, Half-sine wave 11ms |
| Input Voltage | DC24V(±25%) |
| Cooling Method | Conduction to mounting plate |
| Vibration Resistance | 20~2000Hz, 6.06g |
| MTBF | ＞20000 hours |
