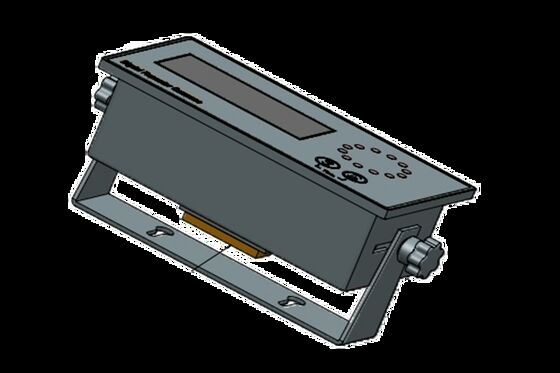

TDD-5 Digital Repeater Compass with 0.1° Accuracy, 24V DC Power, and RS422/RS232 Interface for Ship Navigation
Key Attributes
Brand Name:
Navioptics
Model Number:
TDD-5
Place of Origin:
China
Certification:
CCS
Minimum Order Quantity:
1
Payment Terms:
T/T
Product Summary
TDD-5 Digital Repeater Compass: Compact marine compass with 0.1° accuracy, IP22 protection, and RS422/RS232 interface. Features analog/digital display with adjustable brightness for reliable heading transmission.
Product Custom Attributes
Dimensions:
Shown In The Outline Dimension Drawing
Weight:
About 1 KG
Reading Accuracy:
0.1°
Operating Temperature:
-15℃ ~ + 60℃
Voltage:
24V DC
Power Consumption:
About 6W
Product Description
TDD-5 Digital Repeater Compass
Product Overview
The TDD-5 Digital Repeater Compass is a modern repeater compass featuring compact design and flexible installation options including embedded, wall-mounted, or desktop configurations. This advanced instrument transmits the ship's heading data from the gyrocompass to any location on the vessel.
Utilizing the latest electronic and computer technologies, the repeater compass accurately determines bow and stern lines relative to geographical north, independent of the gyrocompass installation location.
The compass offers dual display modes: analog and digital, with adjustable illumination brightness controlled via front-panel buttons.
Technical Specifications
| Specification | Details |
|---|---|
| Dimensions | As shown in outline dimension drawing |
| Weight | Approximately 1 kg |
| Reading Accuracy | 0.1° |
| Protection Level | IP22 |
| Operating Temperature | -15℃ to +60℃ |
| Voltage | 24V DC |
| Power Consumption | Approximately 6W |
| Heading Serial Interface | RS422 or RS232 (NMEA) |
| RS422 Port | 4800 baud, 1 start bit, 1 stop bit, no parity |
| Cycle Time | 120 ms |
NMEA Interface Compliance: Information transmission complies with NMEA0183 Version 2.00 (IEC 61162-1). Supported statements include:
- $xxHDTxxx.x,T*cc<CR><CF>
- $xxHDM,xxx.x,T*cc<CR><CF>
- $xxHDGxxx.x,,*cc<CR><LF>
Where: xxx.x represents repeater compass heading value, *CC is hexadecimal check bit (00-FF), <CR> is Enter, and <CF> is Migration.
Dimension Drawing
