Control Grade TDFG70T Fiber Optic Gyroscope with ≥±400°/s Dynamic Range, 0.5°/h~0.2°/h Accuracy, and ≤500g Weight
Key Attributes
Brand Name:
NAVI OPTICS
Model Number:
TDFG70T
Place of Origin:
China
Certification:
CCS
Minimum Order Quantity:
one set
Supply Ability:
30 set per month
Delivery Time:
15days
Standard Packaging:
carton box
Product Summary
Control Grade TDFG70T Fiber Optic Gyroscope The TDFG70T Fiber Optic Gyroscope is an advanced angular velocity sensor that utilizes the Sagnac optical effect with an all-digital closed-loop architecture. This high-performance gyroscope delivers real-time angular velocity measurements at sampling ...
Product Custom Attributes
Highlight
Control Grade Fiber Optic Gyroscope
,Precision Measurements Fiber Optic Gyroscope
Dynamic Range:
≥±400°/s
Accuracy（10sec）:
0.5°/h~0.2°/h
Bias In-run:
＜1°/h
Vibration Screening:
20~2000Hz，6.06g
ARW（Angular Random Walk:
＜0.02°/√hr,1σ
Bandwidth:
＞200Hz
Weight:
≤500g
Dimensions:
70mm×70mm×53mm
Product Description

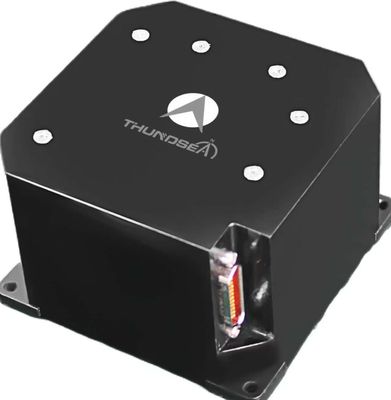

Control Grade TDFG70T Fiber Optic Gyroscope
The TDFG70T Fiber Optic Gyroscope is an advanced angular velocity sensor that utilizes the Sagnac optical effect with an all-digital closed-loop architecture. This high-performance gyroscope delivers real-time angular velocity measurements at sampling rates exceeding 4 kHz via serial communication.
Product Configurations
Available in single-axis, dual-axis, and triaxial configurations. Multi-axis units feature shared light sources and signal-processing circuits for simultaneous measurement across orthogonal axes, ensuring synchronized motion tracking for high-dynamic applications.
Applications
Ideal for stabilization and control systems in guided weapons, attitude control platforms, torpedoes, tactical missiles, and medium to high-end industrial equipment requiring precision motion sensing.
Key Characteristics
- Low noise, low power consumption, and cost-effective operation
- Instant-on capability with digital output for computer integration
- All-solid-state design with no moving parts for enhanced reliability
- Compact size, lightweight construction, and flexible design options
- High reliability and extended operational lifespan
Technical Specifications
| Performance Parameter | Specification |
|---|---|
| Dynamic Range | ≥±400°/s |
| Bias In-Run | <1°/h |
| Accuracy (10sec) | 0.5°/h ~ 0.2°/h |
| Angular Random Walk (ARW) | <0.02°/√hr, 1σ |
| Vibration Screening | 20~2000Hz, 6.06g |
| Bandwidth | >200Hz |
| Turn On Time | 10s |
| Output Signal Format | RS-422 |
| Output Signal Update Rate | 500Hz ~ 2000Hz |
| Output Signal Baud Rate | 230400bps ~ 921600bps |
| Operating Temperature | -40℃ ~ +70℃ |
| Storage Temperature | -55℃ ~ +85℃ |
| Power Supply | 5V |
| Connector | J30J-9ZKP |
| Power Consumption | ≤5W |
| MTBF (per MIL-HDBK-217-F) | >100,000hr |
| Weight | ≤500g |
| Dimensions | 70mm * 70mm * 53mm |
