High Precision Ring Laser Gyroscope TDLG50S with 0.015°/h Bias Stability and Wide Dynamic Range for Inertial Navigation
Key Attributes
Brand Name:
NAVI OPTICS
Model Number:
TDLG50S
Place of Origin:
China
Certification:
CCS
Minimum Order Quantity:
one set
Supply Ability:
30 set per month
Delivery Time:
15days
Standard Packaging:
carton box
Product Summary
High-precision TDLG50S ring laser gyroscope with 0.015°/h bias stability, ±400°/s range, and MIL-HDBK-217-F MTBF >10,000hr. Compact, shock-resistant design for aerospace, marine, and vehicle navigation systems.
Product Custom Attributes
Highlight
High Precision Ring Laser Gyroscope
,Ring Laser Gyroscope
Product Description

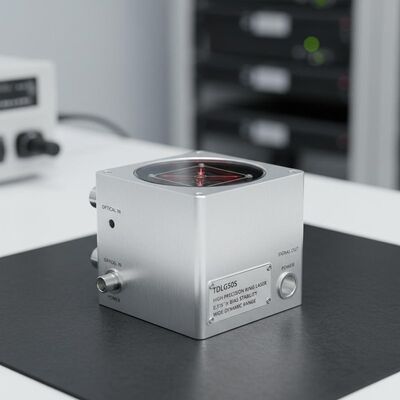

High Precision TDLG50S Ring Laser Gyroscope
The TDLG50S Ring Laser Gyroscope operates on the Sagnac effect principle, measuring carrier angle increments by detecting laser interference phase differences within a ring glass cavity. This integrated gyroscope offers exceptional reliability, environmental adaptability, and stable performance, making it one of the most widely used high-precision inertial navigation sensors globally.
Applications
Ideal for inertial navigation systems and attitude reference equipment in high-end applications including spacecraft, aircraft, artificial satellites, vehicles, ships, and submarines.
Key Features
- Integrated optical path and circuit design with simple structure for easy installation
- Compact size, lightweight construction, and controlled power consumption
- High reliability with excellent shock and vibration resistance
- Strong environmental adaptability and wide dynamic response bandwidth
- Digital signal output for precise measurements
Technical Specifications
| Performance Characteristics | |
|---|---|
| Bias Stability (1σ) | 0.015°/h ~ 0.006°/h |
| Zero Bias Repeatability (1σ) | 0.005°/h ~ 0.003°/h |
| Angular Random Walk (ARW) | 0.003°/√hr ~ 0.0015°/√hr |
| Scale Factor Error (1σ) | ≤5ppm |
| Dynamic Range | ≥±400°/s |
| Bandwidth | >200Hz |
| Electrical Interface | |
| Turn On Time | <5s |
| Output Signal Format | TTL |
| Built-in Self-Test | Yes |
| Output Signal Update Rate | 1Hz |
| Output Signal Baud Rate | 115200 |
| Environmental Specifications | |
| Vibration Shock | 75g, half sine, 6ms |
| Operating Temperature | -40℃ ~ +70℃ |
| Storage Temperature | -55℃ ~ +85℃ |
| Physical Specifications | |
| Power Supply | ±15V, ±5V |
| Connector | J30JM-25ZKP (25 pins) |
| Power Consumption | ≤3W |
| MTBF (per MIL-HDBK-217-F) | >10,000 hours |
| Weight | 0.64kg |
| Dimensions | 90mm * 73mm * 51mm |
