Three Axis Navigation Grade Fiber Optic Gyroscope with 0.01°/h Accuracy and RS-422 Output
Key Attributes
Brand Name:
NAVI OPTICS
Model Number:
TDFG60T
Place of Origin:
China
Certification:
CCS
Minimum Order Quantity:
one set
Supply Ability:
30 set per month
Delivery Time:
15days
Standard Packaging:
carton box
Product Summary
TDFG60T: Navigation-grade FOG with 0.01°/h accuracy, ±400°/s range, 10s startup. All-solid-state design, RS-422 output, MIL-HDBK-217F reliability (>100k hrs). Ideal for aerospace, marine, and industrial INS.
Product Custom Attributes
Highlight
Navigation Grade Fiber Optic Gyroscope
,Three Axis Fiber Optic Gyroscope
Dynamic Range Bias In-run:
≥±400°/s
Turn On Time:
10s
Accuracy（100sec）:
0.02°/h~0.01°/h
Output Signal Format:
RS-422
Weight:
≤550g
Dimensions:
60mm×60mm×28mm
Product Description

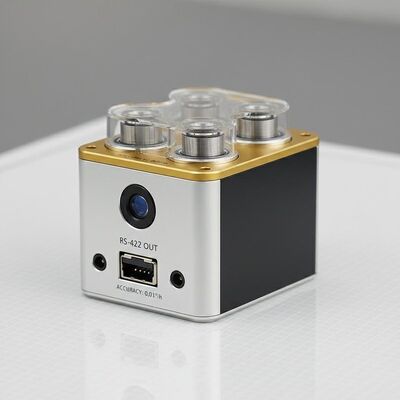

Three Axis Navigation Grade Fiber Optic Gyroscope TDFG60T
The TDFG60T Navigation Grade Fiber Optic Gyroscope is an advanced angular velocity sensor based on the optical Sagnac effect. Utilizing high-performance all-digital closed-loop detection technology, it outputs real-time carrier angular velocity information through serial communication. Available as three single-axis high-precision units or a three-axis integrated configuration, this gyroscope serves as the core sensor for inertial navigation solutions, measuring angular velocity in three orthogonal directions relative to inertial space.
Applications
This navigation-grade fiber optic gyroscope is designed for inertial navigation systems and attitude reference systems across multiple domains including guided munitions, aerospace platforms, land vehicles, marine vessels, submersible vehicles, orbital detection systems, and medium-to-high-end industrial applications.
Key Characteristics
- Low noise, low power consumption, and cost-effective design
- High precision with superior stability and flexible configuration options
- All-solid-state construction with no moving parts
- Rapid start-up capability and digital outputs for seamless integration
- Exceptional reliability and extended operational lifespan
Technical Specifications
| Parameter | Specification |
|---|---|
| Dynamic Range | ≥±400°/s |
| Bias In-Run | <1°/h |
| Accuracy (100sec) | 0.02°/h~0.01°/h |
| Angular Random Walk (ARW) | <0.005°/√hr, 1σ |
| Vibration Screening | 20~2000Hz, 6.06g |
| Bandwidth | >200Hz |
| Turn On Time | 10s |
| Output Signal Format | RS-422 |
| Built-in Self-Test | -- |
| Output Signal Update Rate | 500Hz~2000Hz |
| Output Signal Baud Rate | 230400bps~921600bps |
| Operating Temperature | -40℃ ~ +70℃ |
| Storage Temperature | -55℃ ~ +85℃ |
| Power Supply | 5V |
| Connector (9 pins) | J30JZ/XN9TJCAL01 |
| Power Consumption | ≤4.5W |
| MTBF (per MIL-HDBK-217-F) | >100,000hr |
| Weight | ≤550g |
| Dimensions | Φ59mm*20mm / 60mm*60mm*28mm |
