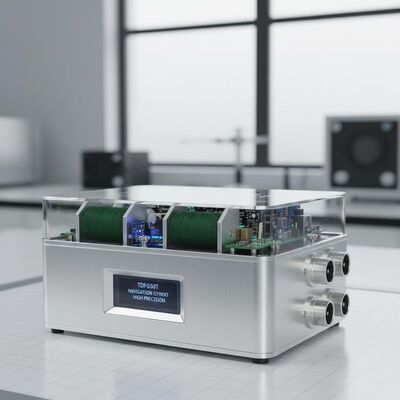

Navigation Grade TDFG50T Fiber Optic Gyroscope with High Precision and All-Solid-State Design for Accurate Navigation
Key Attributes
Brand Name:
NAVI OPTICS
Model Number:
TDFG50T
Place of Origin:
China
Certification:
CCS
Minimum Order Quantity:
one set
Supply Ability:
30 set per month
Delivery Time:
15days
Standard Packaging:
carton box
Product Summary
Navigation-grade TDFG50T FOG delivers ±400°/s range, <1°/h bias stability, and 0.007°/√hr ARW. All-solid-state design ensures reliability with 500Hz bandwidth, ≤500g weight, and -40℃ to +70℃ operation for aerospace, marine, and industrial applications.
Product Custom Attributes
Highlight
Navigation Grade Fiber Optic Gyroscope
,Accurate Navigation Fiber Optic Gyroscope
Dynamic Range:
≥±400°/s
Bias In-run:
＜1°/h
Accuracy（100sec）:
0.04°/h~0.02°/h
ARW（Angular Random Walk:
＜0.007°/√hr,1σ
Vibration Screening:
20~2000Hz，6.06g
Bandwidth:
＞200Hz
Weight:
≤500g
Dimensions:
60mm×60mm×28mm
Product Description
Navigation Grade TDFG50T Fiber Optic Gyroscope
Product Overview
The TDFG50T Fiber Optic Gyroscope serves as a high-precision angular rate sensor utilizing the optical Sagnac effect. Featuring advanced all-digital closed-loop detection technology, it delivers real-time angular velocity data via serial communication interfaces. This device functions as a core component in inertial navigation systems, available in either three independent single-axis configurations or integrated three-axis designs for precise measurement of angular velocity along three orthogonal axes.
Applications
This fiber optic gyroscope is engineered for diverse applications including guided weapon systems, aerospace platforms, ground vehicles, marine vessels, submersibles, and orbital detection systems. It serves as a critical component in both inertial navigation systems (INS) and attitude reference systems (ARS), while supporting medium-to-high-end industrial applications requiring precision motion sensing.
Key Characteristics
- High precision with superior stability and flexible design options
- All-solid-state construction with no moving parts
- Rapid startup times and digital outputs for seamless integration
- Low noise operation with minimal power consumption
- Cost-effective solution with high reliability and extended lifespan
Technical Specifications
| Dynamic Range | ≥±400°/s |
| Bias In-Run | <1°/h |
| Accuracy (100sec) | 0.04°/h~0.02°/h |
| Angular Random Walk (ARW) | <0.007°/√hr, 1σ |
| Vibration Screening | 20~2000Hz, 6.06g |
| Bandwidth | >200Hz |
| Turn On Time | 10s |
| Output Signal Format | RS-422 |
| Output Signal Update Rate | 500Hz~2000Hz |
| Output Signal Baud Rate | 230400bps~921600bps |
| Operating Temperature | -40℃ ~ +70℃ |
| Storage Temperature | -55℃ ~ +85℃ |
| Power Supply | 5V |
| Connector (9 pins) | J30JZ/XN9TJCAL01 |
| Power Consumption | ≤4.5W |
| MTBF (per MIL-HDBK-217-F) | >100,000hr |
| Weight | ≤500g |
| Dimensions | Φ50mm*19mm / 60mm*60mm*28mm |
